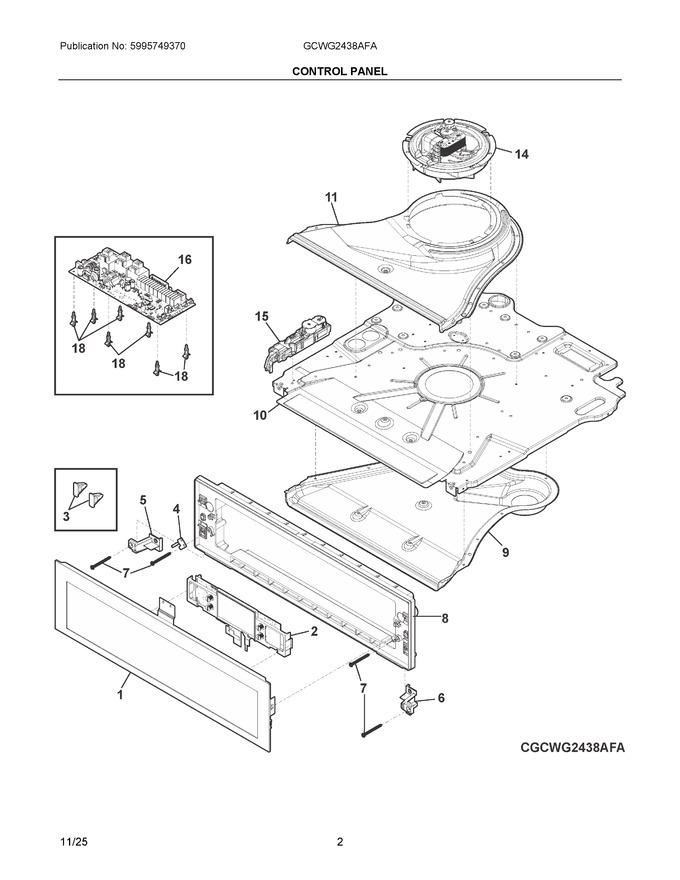

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533835		Control Panel, Assembly, Stainless Trim		Appelez-nous	-
2	5304533827		Controller, Electronic, Oven, Pux		Appelez-nous	-
3	5304533775		Spacer, Controller		Appelez-nous	-
4	5304533777		Bracket, Grounding		Appelez-nous	-
5	5304533755		Cap, Mount, Lh Frame		Appelez-nous	-
6	5304533756		Cap, Mount, Rh Frame		Appelez-nous	-
7	4055549952		Screw, Ph2 Nylon Washr, #8 X 1/2		Appelez-nous	-
8	5304533801		Trim, Surround, Control		Appelez-nous	-
9	5304533822		Panel, Air Duct, Lower		Appelez-nous	-
10	140199855028		Panel, Air Duct, Middle		Appelez-nous	-
11	4055549515		Panel, Air Duct, Upper		Appelez-nous	-
14	5304533823		Blower Assembly, Cooling, W/tachometer		Appelez-nous	-
15	140208775035		Door Lock, Asswembly   (Replaces: 5304533761)		Appelez-nous	-
16	5304533762		Pc Board, Relay/power, Main, Ovc				$ 256.92
18	4055549531		Clip, Standoff, Pc Board		Appelez-nous	-
NI	5304533778		Screw, Hex Ph2 T/cut, 6-20 X 9.3		Appelez-nous	-
NI	4055548616		Screw, Hex/multi, #8 X 8mm		Appelez-nous	-
NI	5304533825		Harness, Wiring, Main, W/capacitor		Appelez-nous	-
NI	5304533776		Harness, Wiring, User Interface, Pux		Appelez-nous	-
NI	4055549689		Screw, Pan #2ph, #8 X 50		Appelez-nous	-
NI	4055548921		Screw, #2 Ph Ab Mush, #8 X 1/2, Black		Appelez-nous	-
NIA	5304533824		Harness, Wiring, Cooling Fan, Tachometer		Appelez-nous	-
NIA	5304533765		Harness, Wiring, Door Lock		Appelez-nous	-
