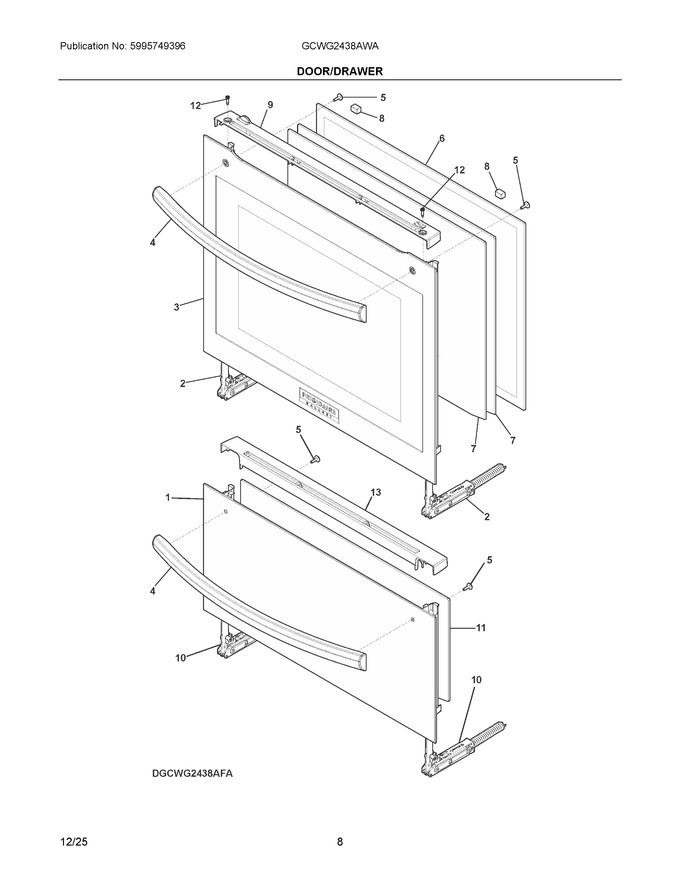

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533838		Door Assembly, Outer, White, Grill Box		Appelez-nous	-
2	5304533780		Hinge, Oven Door		Appelez-nous	-
3	5304533795		Door Assembly, Outer, White, Oven, W/badge		Appelez-nous	-
4	5304533796		Handle, Door, White		Appelez-nous	-
5	5612311166		Screw, T20 Pan, M4 X 16, Handle		Appelez-nous	-
6	4055549747		Glass, Door, Liner		Appelez-nous	-
7	4055549739		Glass, Door, Middle		Appelez-nous	-
8	4055549754		Spacer, Rubber, Door Glass		Appelez-nous	-
9	5304533783		Trim, Door Vent, Upper		Appelez-nous	-
10	140199792015		Hinge, Door, Grill Box		Appelez-nous	-
11	5304533832		Glass, Door, Inner, Grill Box		Appelez-nous	-
12	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
13	5304533833		Trim, Door Cap, Grill Box		Appelez-nous	-
NI	85801500052716		Screw, Ph2 Hex 1/4, M4 X 5, Black, Door Hinge		Appelez-nous	-
