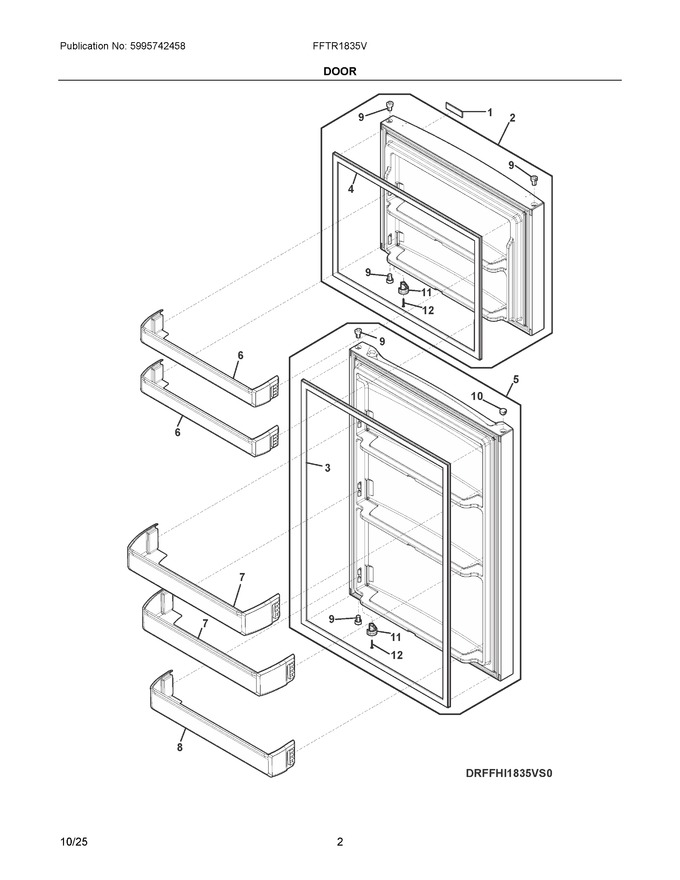

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 2 | 5304532783 | Door Assembly, Fresh Food, Stainless |
|
$ 232.54 | |||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 5304532784 | Door Assembly, Freezer, Stainless |
|
Immediately | $ 299.38 | ||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 50.63 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 70.75 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 22.42 | ||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 8.34 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
