01 - Cover Sheet
02 - Oven, Cabinet

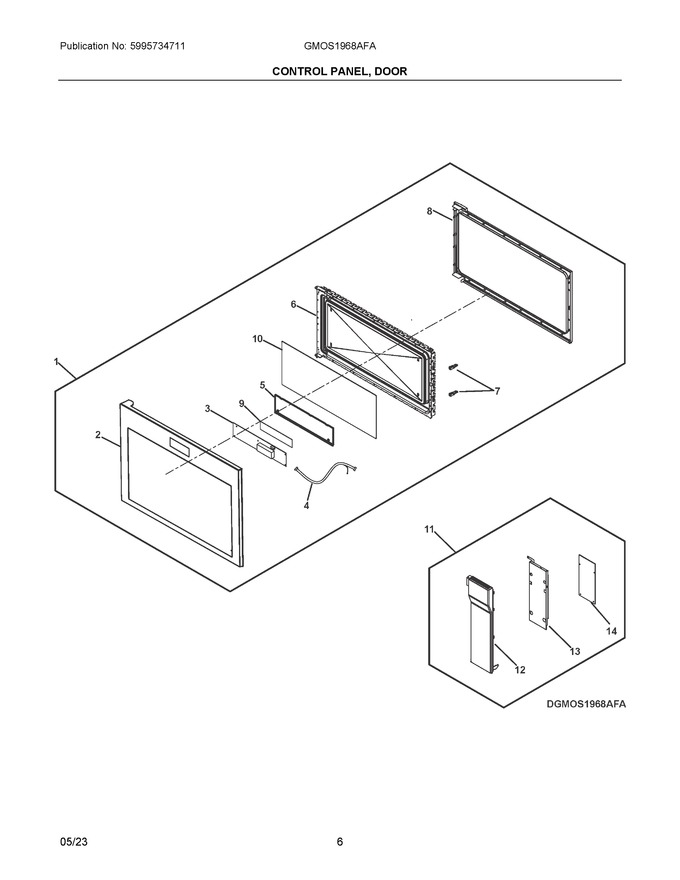

03 - Control Panel, Door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534623 | Door Assembly, Complete, Stainless |
|
- | |||||
| 2 | 5304534624 | Door Assembly, Outer, Stainless, W/badge |
|
- | |||||
| 3 | 5304534625 | Pc Board, Display, Control |
|
- | |||||
| 4 | 5304534626 | Harness, Connector, Door |
|
$ 71.10 | |||||
| 5 | 5304523246 | Cover, Display Board |
|
- | |||||
| 6 | 5304527853 | Frame Assembly, Door |
|
- | |||||
| 7 | 5304523249 | Latch, Door |
|
$ 8.77 | |||||
| 8 | 5304527880 | Gasket, Door (Replaces: 5304527854) |
|
$ 512.17 | |||||
| 9 | 5304534627 | Insulation, Control, Door |
|
- | |||||
| 10 | 5304534628 | Glass, Insulating, Door |
|
- | |||||
| 11 | 5304534629 | Control Panel, Assembly, Complete |
|
- | |||||
| 12 | 5304534630 | Control Panel |
|
- | |||||
| 13 | 5304527857 | Shield, Control Panel |
|
- | |||||
| 14 | 5304534631 | Pc Board, Power, Control |
|
- |
