01 - Cover Sheet

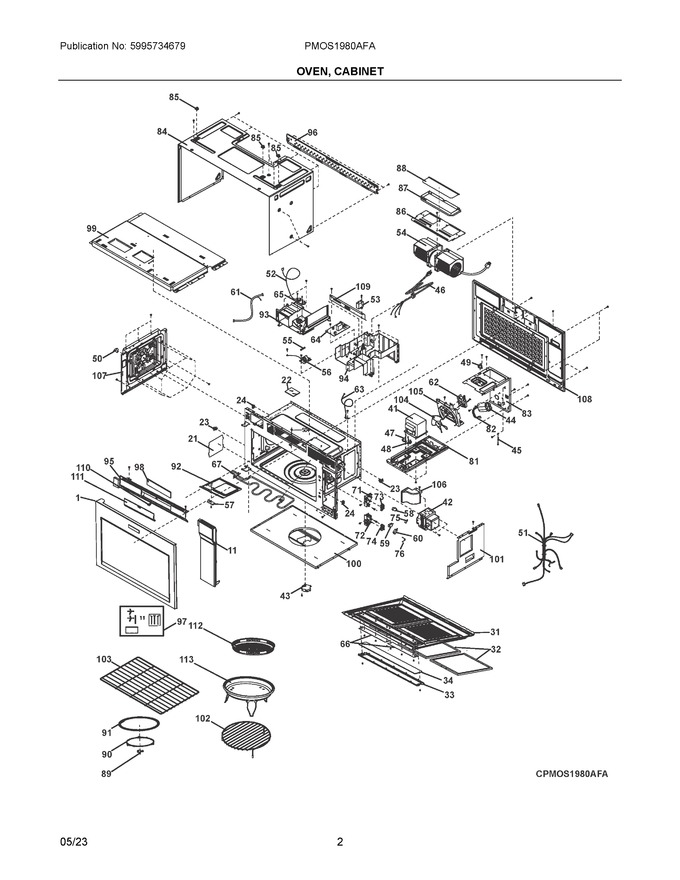

02 - Oven, Cabinet


03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534650		Door Assembly, Complete, Stainless		Appelez-nous	-
11	5304534652		Control Panel, Assembly, Complete		Appelez-nous	-
21	5304523276		Cover, Wave Guide			Immediately	$ 12.02
22	5304534632		Lens, Cavity Lamp		Appelez-nous	-
23	5304514287		Support, Shelf, Rhf/lhr				$ 10.85
24	5304514283		Support, Shelf, Lhf/rhr				$ 10.94
31	5304534633		Base Plate			Immediately	$ 138.47
32	5304513468		Filter, Grease				$ 159.68
33	5304534634		Bracket, Lamp Glass				$ 23.27
34	5304534635		Glass, Lamp			Immediately	$ 25.40
41	5304513457		Transformer, High Voltage				$ 414.67
42	5304521576		Magnetron, High Voltage			Immediately	$ 272.69
43	5304513471		Motor, Turntable			Immediately	$ 92.20
44	5304513458		Capacitor, High Voltage			Immediately	$ 124.39
45	5304513459		Diode, High Voltage			Immediately	$ 30.37
46	5304512501		Power Cord, Electric				$ 106.27
47	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
48	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
49	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
50	5304515313		Thermostat, 160/95			Immediately	$ 31.66
51	5304534636		Harness, Wiring, Main				$ 175.47
52	5304509652		Sensor, Humidity				$ 305.46
53	5304512525		Capacitor, Start		Appelez-nous	-
54	5304513464		Fan Assembly, Venting, W/motor				$ 557.67
55	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
56	5304525109		Filter, Noise, Electronic				$ 86.00
57	5304517872		Lamp, Led			Immediately	$ 44.24
58	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
59	5304509459		Switch, Monitor			Immediately	$ 30.84
60	5304515182		Switch, Interlock, Secondary			Immediately	$ 34.84
61	5304504073		Wire, Connector, Pc Board				$ 130.98
62	5304513476		Motor, Fan				$ 190.32
63	5304527859		Thermistor				$ 32.54
64	5304527860		Pc Board, Dc Motor			Immediately	$ 148.20
65	5304534637		Thermostat, Safety, 180/145 Volt		Appelez-nous	-
66	5304534638		Lamp, Led			Immediately	$ 82.66
67	5304534639		Element, Heating		Appelez-nous	-
71	5304523259		Bracket, Interlock, Upper			Immediately	$ 18.56
72	5304523260		Bracket, Interlock, Lower			Immediately	$ 18.56
73	5304523261		Lever, Interlock, Upper				$ 8.10
74	5304523262		Lever, Interlock, Lower				$ 7.96
75	5304523264		Spring, Interlock, Lower				$ 7.96
76	5304523263		Spring, Interlock, Upper				$ 7.96
81	5304513460		Plate, Hv Transformer, Mounting		Appelez-nous	-
82	5304513482		Holder, Hv Capacitor		Appelez-nous	-
83	5304513479		Duct, Air Guide, Back		Appelez-nous	-
84	5304527861		Wrapper, Outer		Appelez-nous	-
85	5304509436		Mounting Nut Kit			Immediately	$ 14.71
86	5304513481		Cover, Vent Motor				$ 51.38
87	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
88	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
89	5304534640		Coupler, Turntable				$ 30.18
90	5304509438		Support, Turntable Ring				$ 52.20
91	5304513473		Tray, Turn Table, Glass				$ 209.21
92	5304534641		Cover, Lamp, Cavity		Appelez-nous	-
93	5304534642		Air Duct, Lh		Appelez-nous	-
94	5304534643		Air Duct, Rh		Appelez-nous	-
95	5304534644		Grill, Vent				$ 84.11
96	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
97	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
98	FRPAMRAF		Filter, Charcoal, 2" X 10   (Replaces: 5304464577)			Immediately	$ 37.86
99	5304534645		Insulation Assembly, Upper		Appelez-nous	-
100	5304527883		Insulation, Assembly, Lower		Appelez-nous	-
101	5304527884		Insulation, Assembly, Rh		Appelez-nous	-
102	5304523266		Rack, Round, Wire				$ 80.96
103	5304527865		Rack, Oven Shelf				$ 113.26
104	5304509473		Fan Blade, Cooling Fan				$ 15.47
105	5304513475		Guide, Fan		Appelez-nous	-
106	5304527866		Deflector, Wind Guide, Magnetron		Appelez-nous	-
107	5304534646		Convection, Assembly		Appelez-nous	-
108	5304527867		Panel, Back Plate		Appelez-nous	-
109	5304513484		Shield, Air		Appelez-nous	-
110	5304533650		Catch, Vent Door				$ 14.55
111	5304534647		Cover, Charcoal Filter				$ 24.72
112	5304534648		Tray, Air Fry		Appelez-nous	-
113	5304534649		Pan, Air Fry		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
