SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

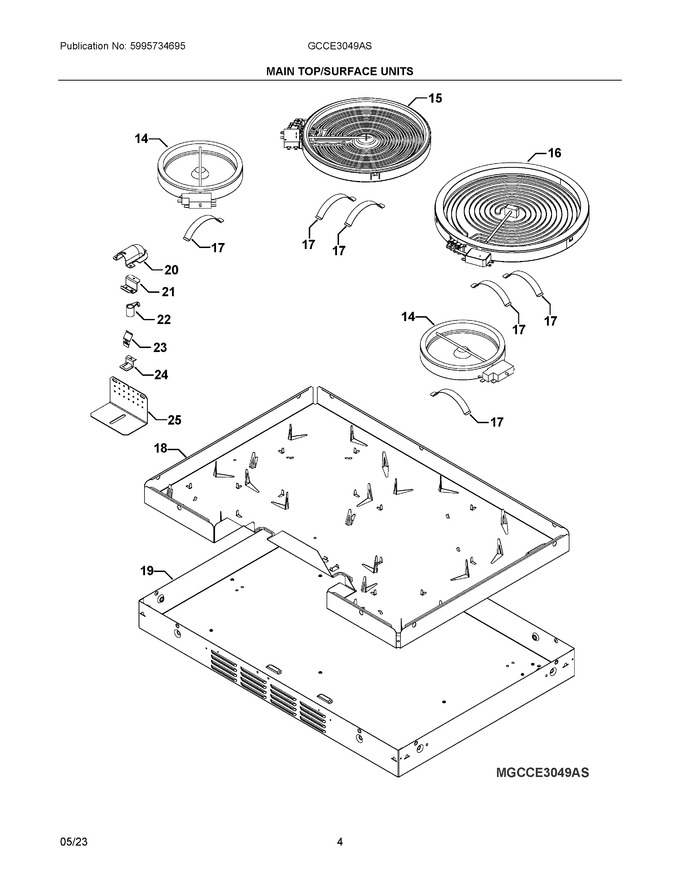

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
15	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 216.16
16	316282101		Element, Surface, 9"/12", 1200w/1800w, Dual Radiant   (Replaces: 318198935)			Immediately	$ 283.03
17	387372900		Spring, Surface Element				$ 15.17
18	5304518259		Box, Support, Inner, Element		Appelez-nous	-
19	140229566033		Box, Burner, Outer, 30   (Replaces: 5304534146)		Appelez-nous	-
20	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
21	5304518258		Bracket, Support, Z Style		Appelez-nous	-
22	5304534149		Bracket, Support, Plastic		Appelez-nous	-
23	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
24	387683300		Bracket, Surface Element			Immediately	$ 13.42
25	5304538915		Bracket, Retainer, Main Top   (Replaces: 5304522050)			Immediately	$ 5.41
NI	5304534154		Harness, Wiring, Main				$ 145.95
NI	5304534147		Harness, Box & Cable, Power Connect				$ 152.24
NI	202855101		Holder, Cable				$ 1.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305338602		Screw		Appelez-nous	-
NIA	305309608		Screw, M4		Appelez-nous	-
NIA	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NIA	305376101		Screw, Bracket, Surface Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
