SELECT A DIAGRAM

01 - Cover Sheet

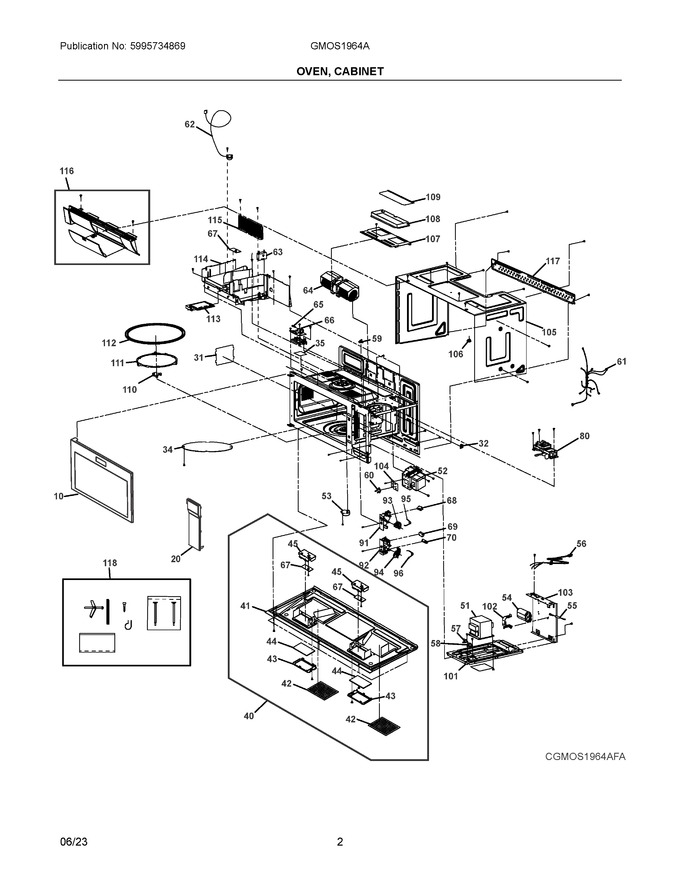

02 - Oven, Cabinet


03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304534772		Door Assembly, Complete, Black Stainless				$ 593.04
20	5304538955		Control Panel, Assembly, Complete   (Replaces: 5304534776)			Immediately	$ 163.38
31	5304523276		Cover, Wave Guide			Immediately	$ 12.02
34	5304523277		Cover, Stirrer				$ 14.46
35	5304509455		Tape, Lamp		Appelez-nous	-
40	5304534778		Base Assembly				$ 120.89
41	5304523256		Base, Assembly				$ 127.00
42	5304517871		Filter, Grease			Immediately	$ 26.91
43	5304509441		Frame, Lens Holder		Appelez-nous	-
44	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
45	5304509442		Cover, Lamp				$ 59.09
51	5304509476		Transformer, High Voltage				$ 440.36
52	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
53	5304509440		Motor, Turntable				$ 118.13
54	5304523278		Capacitor, High Voltage			Immediately	$ 75.28
55	5304515185		Diode, High Voltage			Immediately	$ 25.83
56	5304512501		Power Cord, Electric				$ 106.27
57	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
58	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
59	5304515178		Thermostat, Cutout, Oven Cavity			Immediately	$ 28.53
60	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
61	5304523279		Harness, Wiring, Main				$ 122.18
62	5304509652		Sensor, Humidity				$ 305.46
63	5304509453		Capacitor, Start				$ 141.75
64	5304523280		Motor, Vent/blower			Immediately	$ 362.91
65	5304509451		Fuse			Immediately	$ 13.01
66	5304525109		Filter, Noise, Electronic				$ 86.00
67	5304517872		Lamp, Led			Immediately	$ 44.24
68	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
69	5304512529		Switch, Monitor			Immediately	$ 37.96
70	5304515182		Switch, Interlock, Secondary			Immediately	$ 34.84
80	5304532793		Cooling Fan, Assembly			Immediately	$ 113.36
91	5304523259		Bracket, Interlock, Upper			Immediately	$ 18.56
92	5304523260		Bracket, Interlock, Lower			Immediately	$ 18.56
93	5304523261		Lever, Interlock, Upper				$ 8.10
94	5304523262		Lever, Interlock, Lower				$ 7.96
95	5304523263		Spring, Interlock, Upper				$ 7.96
96	5304523264		Spring, Interlock, Lower				$ 7.96
101	5304523282		Base, Transformer		Appelez-nous	-
102	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
103	5304523283		Deflector, Air Guide		Appelez-nous	-
104	5304537787		Bracket, Tco   (Replaces: 5304534779)		Appelez-nous	-
105	5304523284		Wrapper, Outer Cabinet, Black			Immediately	$ 134.46
106	5304509436		Mounting Nut Kit			Immediately	$ 14.71
107	5304513481		Cover, Vent Motor				$ 51.38
108	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
109	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
110	5304513472		Coupler, Turn Table			Immediately	$ 19.76
111	5304509438		Support, Turntable Ring				$ 52.20
112	5304509621		Tray, Turntable				$ 154.61
113	5304509450		Cover, Lamp, Oven Cavity				$ 18.62
114	5304523285		Duct, Air		Appelez-nous	-
115	5304509456		Cover, Control Shield, Right				$ 19.52
116	5304534780		Vent Grill, Assembly			Immediately	$ 111.52
117	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
118	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38

    View Diagram in Separate Window       Print Part List
