SELECT A DIAGRAM

01 - Cover Sheet

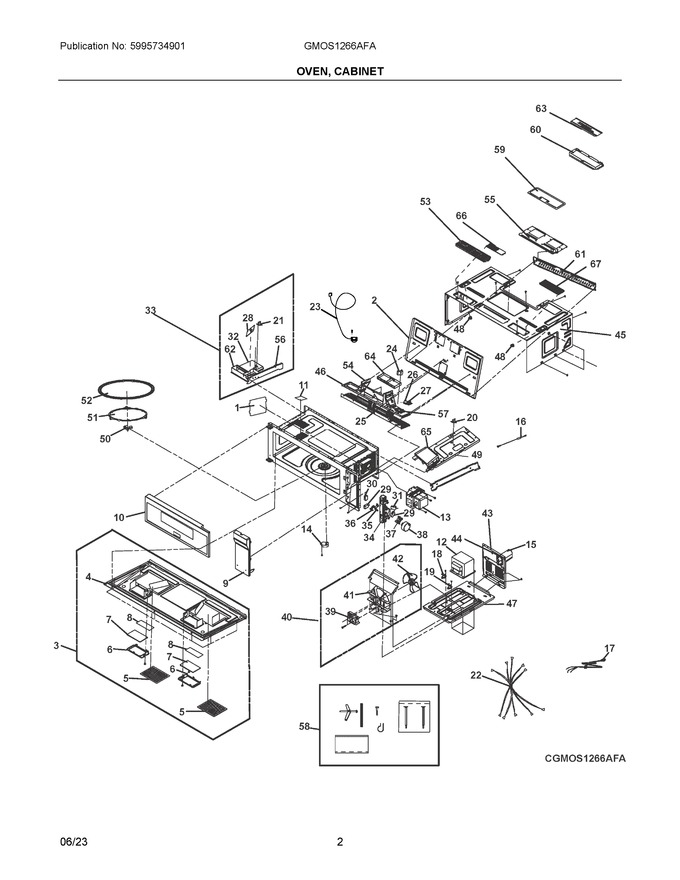

02 - Oven, Cabinet


03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523276		Cover, Wave Guide			Immediately	$ 12.02
2	5304534929		Panel, Back		Appelez-nous	-
3	5304534930		Base Assembly, Complete				$ 165.56
4	5304534931		Panel, Base		Appelez-nous	-
5	5304534932		Filter, Grease				$ 33.35
6	5304534933		Bracket, Lamp Glass		Appelez-nous	-
7	5304534934		Lens, Lamp, Glass		Appelez-nous	-
8	5304534935		Lamp, Led				$ 28.05
9	5304534936		Control Panel, Assembly, Complete			Immediately	$ 408.02
10	5304534937		Door Assembly, Complete				$ 260.55
11	5304509455		Tape, Lamp		Appelez-nous	-
12	5304509476		Transformer, High Voltage				$ 440.36
13	5304534938		Magnetron				$ 154.95
14	5304534939		Motor, Turntable		Appelez-nous	-
15	5304528930		Capacitor, High Voltage				$ 66.51
16	5304534940		Diode, High Voltage				$ 60.40
17	5304534941		Power Cord, Electric Srvice		Appelez-nous	-
18	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
19	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
20	5304534942		Thermostat, 120/0 Deg				$ 13.81
21	5304528947		Thermostat, 160 Deg.				$ 17.35
22	5304534943		Harness, Wiring, Main				$ 144.87
23	5304509652		Sensor, Humidity				$ 305.46
24	5304512525		Capacitor, Start		Appelez-nous	-
25	5304534944		Motor, Venting				$ 281.37
26	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
27	5304525109		Filter, Noise, Electronic				$ 86.00
28	5304517872		Lamp, Led			Immediately	$ 44.24
29	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
30	5304509460		Microswitch, Secondary   (Replaces: 5304520020)			Immediately	$ 45.27
31	5304520021		Microswitch, Monitor			Immediately	$ 16.68
32	5304534945		Guide, Air Cover		Appelez-nous	-
33	5304534946		Exhaust Assembly, Steam		Appelez-nous	-
34	5304534947		Latch Board				$ 20.54
35	5304519342		Lever, Latch				$ 7.28
36	5304528950		Switch, Lever, Upper		Appelez-nous	-
37	5304528952		Lever, Latch Board				$ 9.41
38	5304534948		Motor, Latch			Immediately	$ 108.35
39	5304509471		Motor, Cooling Fan			Immediately	$ 150.42
40	5304534949		Fan Motor, Assembly		Appelez-nous	-
41	5304534950		Guide, Fan		Appelez-nous	-
42	5304519350		Blade, Fan				$ 16.92
43	5304534951		Air Guide, B		Appelez-nous	-
44	5304534952		Cover, Hv Capacitor		Appelez-nous	-
45	5304534953		Wrapper, Outer Case				$ 133.36
46	5304534954		Damper, Metal		Appelez-nous	-
47	5304534955		Damper, Metal, B		Appelez-nous	-
48	5304509436		Mounting Nut Kit			Immediately	$ 14.71
49	5304534956		Damper		Appelez-nous	-
50	5304518906		Coupler, Turntable				$ 30.41
51	5304534957		Ring Assembly, Turntable				$ 18.66
52	5304525313		Tray, Turntable				$ 131.18
53	5304534958		Deflector, Wind, Plastic				$ 19.09
54	5304534959		Air Duct		Appelez-nous	-
55	5304513481		Cover, Vent Motor				$ 51.38
56	5304534960		Cover, Metal Guide		Appelez-nous	-
57	5304515326		Holder, Noise Filter				$ 18.79
58	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
59	5304534961		Bracket, Metal		Appelez-nous	-
60	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
61	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
62	5304534962		Support, Plastic		Appelez-nous	-
63	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
64	5304534963		Bracket, Plastic		Appelez-nous	-
65	5304534964		Shield, Protector		Appelez-nous	-
66	5304534965		Air Duct, Metal, Lh		Appelez-nous	-
67	5304534966		Air Duct, Metal, Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
