SELECT A DIAGRAM

01 - 34526 Transmission Assy


02 - Agitator & Drive Bell


03 - Brg Hsg/brake/pulley & Pivot Dome


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan


05 - Clothes Guard/washtub/lint Filter & Hub


06 - Drain Hose & Siphon Break


07 - Front Panel, Base & Cabinet Assy

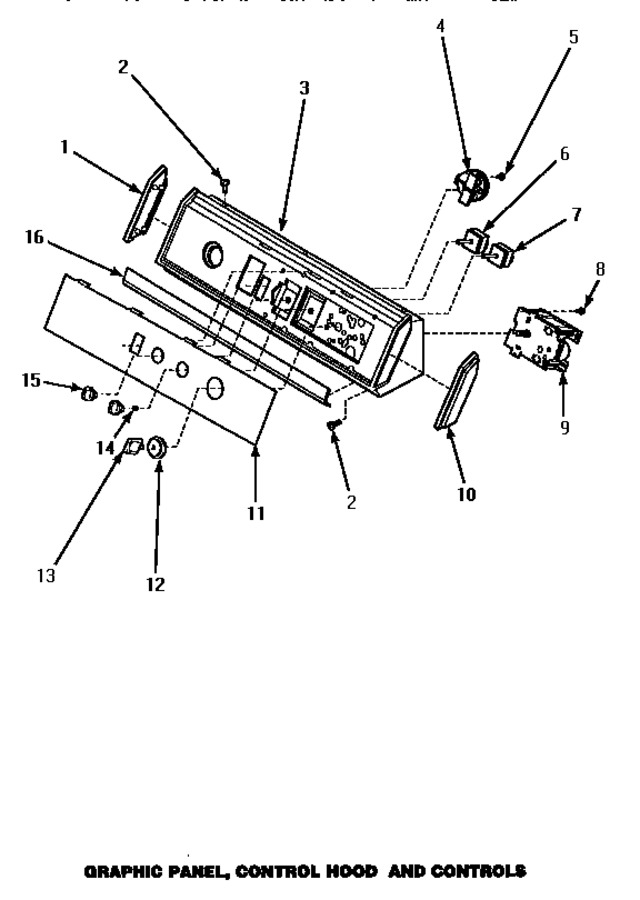

08 - Graphic Panel, Control Hood & Controls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mixing Valve Assy


11 - Mixing Valve, Motor Conn Blocks & Term


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub, Cover & Pressure Hose


14 - Out-of-balance Switch


15 - Power Cord & Terminals


16 - Special Tools


17 - Special Tools (continued)


18 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	32404		Assy,hood & Mtg Plate		Appelez-nous	-
4	36251		Switch, Pressure		Appelez-nous	-
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	24392		Switch Temp		Appelez-nous	-
7	33690		Switch,selector-cycle		Appelez-nous	-
8	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
9	31240		Timer		Appelez-nous	-
10	31248		Cap,end-r.h.-chrome		Appelez-nous	-
11	35232		Panel,graphics		Appelez-nous	-
12	33817		Assy,timer Skirt-black		Appelez-nous	-
13	33897		Knob,timer-washer-blac				$ 22.96
14	57584		Nut		Appelez-nous	-
15	33610		Assy,knob-rotary-black		Appelez-nous	-
16	33123R		Trim		Appelez-nous	-
	NOTE:		Siphon Break Kit Must Be Installed In Drain Hose If Drain Receptacle Is Lower Than Cabinet Top Of Washer.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
