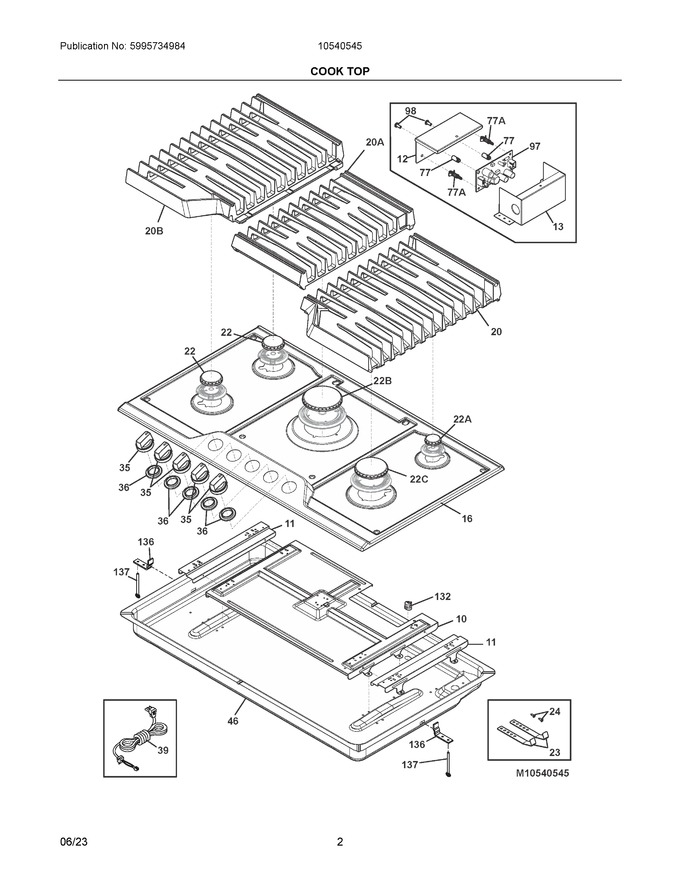

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304533590		Shield, Main Heat		Appelez-nous	-
11	5304533617		Shield, Heat, Side		Appelez-nous	-
12	5304527656		Cover, Smps Board				$ 90.25
13	5304527655		Shield, Heat, Smps Board		Appelez-nous	-
16	5304535447		Maintop, Assembly, Stainless		Appelez-nous	-
20	5304533646		Grate, Burner, Right Side				$ 271.95
22	5304533596		Cap, Burner, Medium			Immediately	$ 32.66
23	5304535449		Bracket, Cooktop Support		Appelez-nous	-
24	5304535448		Screw, Bracket Phil Hd, 12.7mm		Appelez-nous	-
35	5304533627		Knob, Top Valve, Stainless, Backlit		Appelez-nous	-
36	5304533580		Cover, Led		Appelez-nous	-
39	5304535446		Power Cord, Electrical, Supply		Appelez-nous	-
46	5304527685		Box, Burner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
97	5304527657		Pc Board, Smps, Backlit Knobs		Appelez-nous	-
98	305309608		Screw, M4		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	5304533645		Grate, Burner, Center				$ 227.51
20B	5304533644		Grate, Burner, Left Side				$ 271.19
22A	5304533595		Cap, Burner, Small			Immediately	$ 28.92
22B	5304533597		Cap, Burner, Xtra Large			Immediately	$ 46.36
22C	5304533619		Cap, Burner, Large				$ 40.34
77A	316114100		Spacer				$ 60.96
NI	305338602		Screw		Appelez-nous	-
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
