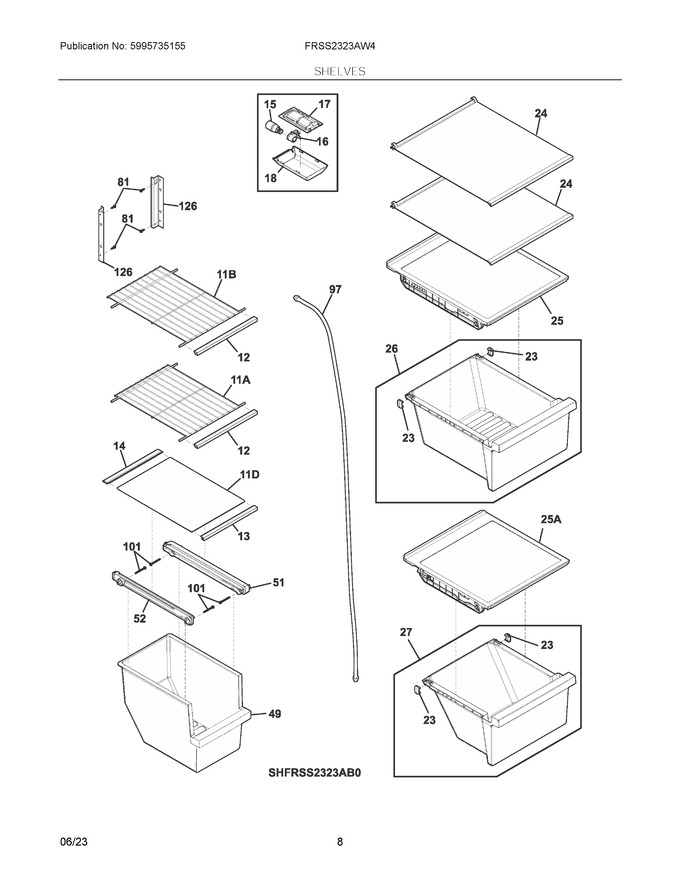

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527181		Trim, Wire Shelf, White				$ 12.13
13	5304527183		Trim, Glass Shelf, Freezer, Front				$ 99.35
14	5304527129		Trim, Freezer Shelf, Rear				$ 15.92
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304522315		Socket, Led Light			Immediately	$ 10.62
17	5304526001		Housing, Light, Fresh Food				$ 12.13
18	5304526002		Lens, Light, Fresh Food				$ 22.75
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	5304527174		Shelf Assembly, Glass, White			Immediately	$ 131.19
25	140116199146		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304527178)		Appelez-nous	-
26	5304535373		Crisper Pan, Upper, W/slide Clips   (Replaces: 5304527211)				$ 114.90
27	5304527212		Crisper Pan, Lower, W/slide Clips				$ 174.36
49	5304527154		Basket, Freezer, Sliding				$ 78.32
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220134		Tube, Water, 91.4", Natural, Filter Base To, Secondary Valve				$ 21.99
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
11A	5304532465		Shelf, Fixed, Freezer   (Replaces: 241657501)				$ 54.10
11B	5304532464		Shelf, Fixed Upper, Freezer   (Replaces: 241657503)		Appelez-nous	-
11D	241992914		Shelf-freezer, Glass, Lower				$ 51.74
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
25A	5304535417		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket   (Replaces: 5304527179)				$ 82.16
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
