SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram

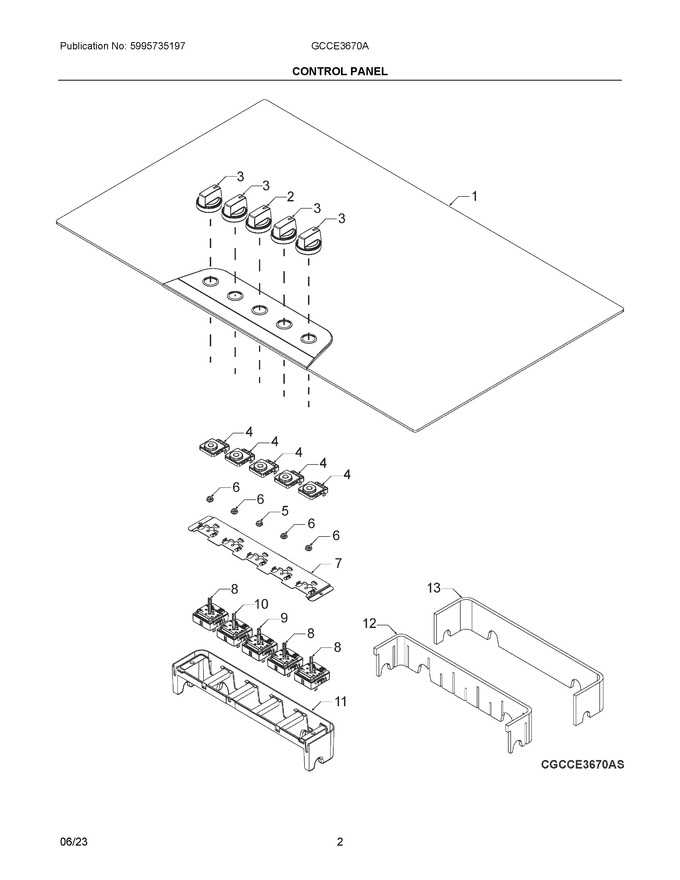

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534177		Main Top, Assembly, Black Stainless, W/trim		Appelez-nous	-
2	5304536760		Knob, D Shaft, Black Stainless   (Replaces: 5304534171)		Appelez-nous	-
3	5304534172		Knob, H Shaft, Black Stainless				$ 96.25
4	5304534155		Lamp, Led, Backlit			Immediately	$ 58.19
5	5304534160		Sealing Socket, D Shaft		Appelez-nous	-
6	5304534161		Sealing Socket, H Shaft				$ 7.69
7	5304534165		Support, Surface Switch		Appelez-nous	-
8	5304526190		Switch, Surface Heating, Single			Immediately	$ 90.50
9	5304527965		Switch, Surface Heating, Dual			Immediately	$ 100.56
10	5304534153		Switch, Surface Heating, Turbo Boil			Immediately	$ 84.53
11	5304534166		Housing, Surface Switch		Appelez-nous	-
12	5304534168		Insulation, Thermal, 5 Zone Inner		Appelez-nous	-
13	5304518265		Insulation, Control Box		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	5304536454		Screw, Switch Mtg., M4 X 7   (Replaces: 319224001)				$ 2.98
NIA	5304534152		Screw, M4 X 8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
