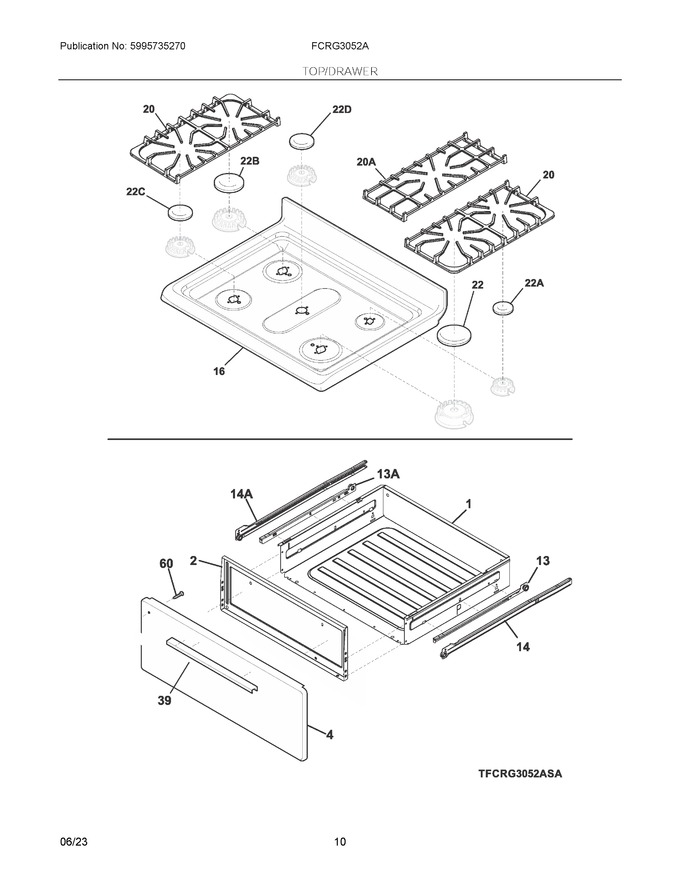

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer			Immediately	$ 26.54
4	5304513125		Panel, Drawer, Black				$ 90.86
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	316610006		Main Top, Black				$ 194.90
20	5304526186		Grate, Left				$ 293.54
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 28.05
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
20A	5304526187		Grate, Center				$ 190.35
20B	5304526188		Grate, Right				$ 190.35
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 18.95
22B	5304527844		Cap-burner, 12k, Black, Matte, 3mm				$ 21.27
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
