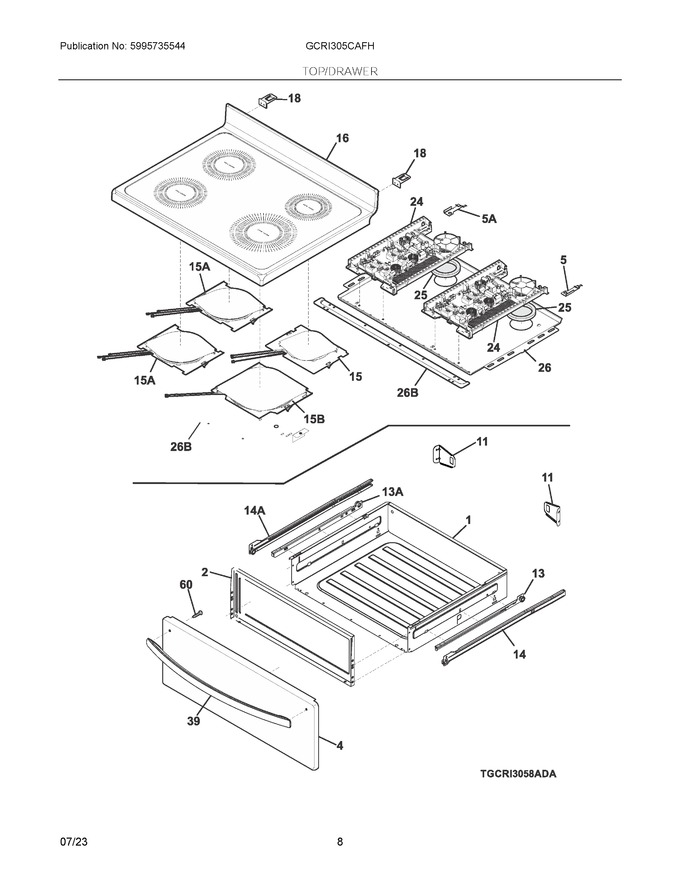

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer |
|
$ 28.83 | |||||
| 4 | 5304518011 | Panel, Drawer, Stainless |
|
Immediately | $ 160.88 | ||||
| 5 | 5304511076 | Bracket, Cooktop, Rh Rear |
|
- | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 11 | 5304517906 | Bracket, Rear Support, (2) |
|
$ 11.38 | |||||
| 13 | 5304517905 | Glide, Drawer, Black, Rh Inner |
|
$ 16.69 | |||||
| 14 | 5304517904 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 25.79 | ||||
| 15 | 387404760 | Element Assembly, Induction Coil, 140mm |
|
Immediately | $ 86.82 | ||||
| 16 | 5304511258 | Smoothtop Assembly, Glass, Black |
|
$ 571.81 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 24 | 5304521812 | Generator Board, Power, Induction |
|
Immediately | $ 337.82 | ||||
| 25 | 316302202 | Seals, Ring, 3.5" And 4.5", Fans, (2) |
|
- | |||||
| 26 | 5304522702 | Panel, Induction Mtg |
|
- | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless |
|
Immediately | $ 168.44 | ||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 13A | 5304517903 | Glide, Drawer, Black, Lh Inner |
|
$ 28.97 | |||||
| 14A | 5304517902 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 47.98 | ||||
| 15A | 387404870 | Element Assembly, Induction Coil, 180mm |
|
Immediately | $ 84.96 | ||||
| 15B | 387761249 | Element Assembly, Induction Coil, 210mm |
|
Immediately | $ 106.18 | ||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| 5A | 5304511075 | Bracket, Cooktop, Lh Rear |
|
$ 4.26 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5304524911 | Harness, Communication |
|
$ 78.11 | |||||
| NI | 5304517540 | Harness, Wiring, Surface |
|
$ 62.34 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
