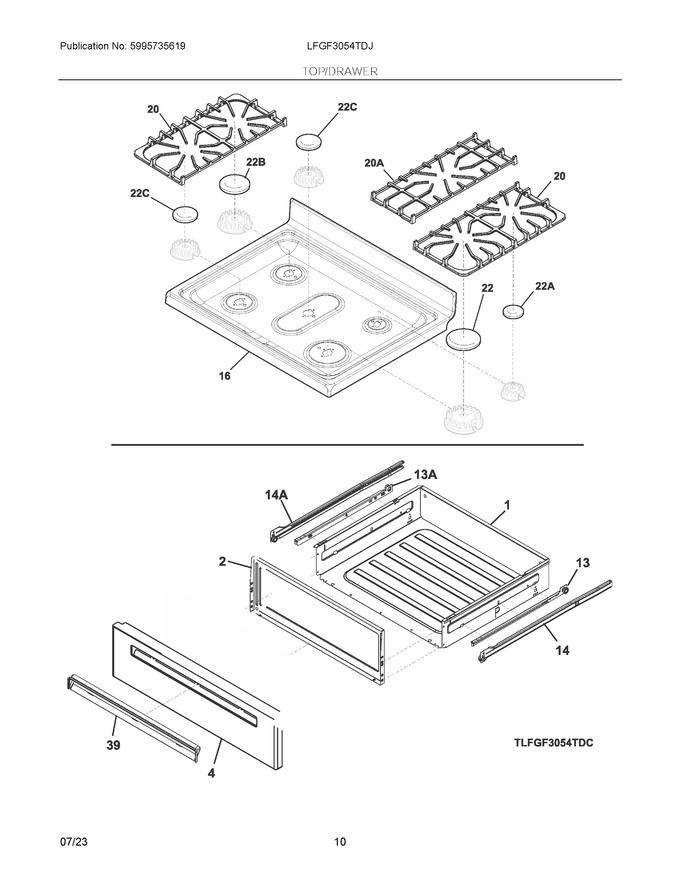

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer			Immediately	$ 26.54
4	5304510528		Panel, Drawer, Black Stainless, W/integrtd Hole				$ 194.74
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	316610014		Main Top, Black			Immediately	$ 253.03
20	807327101		Grate, Burner, Black, Side, (2)				$ 243.81
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 28.05
39	5304510529		Handle, Drawer Insert, Black		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
20A	807412601		Grate, Burner, Black, Center				$ 240.26
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 18.95
22B	5304527845		Cap-burner, 14k, Black, Matte, 3mm				$ 22.75
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 36.55
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
