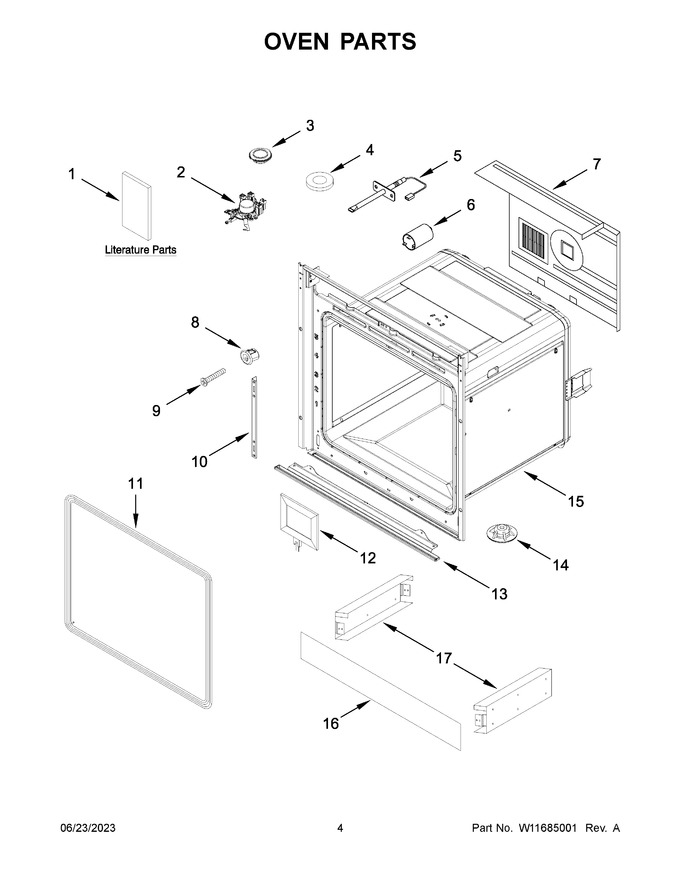

03 - Oven Parts


04 - Internal Oven Parts


05 - Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11608852		Instructions, Installation		Appelez-nous	-
2	W11347847		Latch, Door			Immediately	$ 273.86
3	W11509867		Cap		Appelez-nous	-
4	W11594958		Washer, Teflon   (Replaces: W11594218)		Appelez-nous	-
5	W11790987		Probe, Oven Temperature   (Replaces: W11594207)				$ 138.98
6	W10549523		Filter, Line Noise			Immediately	$ 133.37
7	W11683048		Panel, Rear Oven   (Replaces: W11681244)		Appelez-nous	-
8	W10578780		Bumper				$ 20.04
9	W10519818		Kit, Oven Screws				$ 13.42
10	W11581007		Hinge, Running Mechanism		Appelez-nous	-
11	W10518387		Gasket, Door				$ 158.97
12	W11348087		Lamp, Halogen 25 Watt (with Gasket)				$ 108.06
13	W10517979		Trim, Lower			Immediately	$ 59.66
14	W10545973		Foot, Level Oven		Appelez-nous	-
15	NP		Following Parts Not Illustrated		Appelez-nous	-
16	W11685526		Panel, Insert   (Replaces: W11684285)		Appelez-nous	-
17	W11685528		Bracket, Panel   (Replaces: W11684288)				$ 110.39
1A	W11609950		Manual, Owner's		Appelez-nous	-
1B	W11260143		Sheet, Tech		Appelez-nous	-
NI	W11594210		Screw Kit, Insert Panel			Immediately	$ 51.33
NI	W11594182		Harness, Main				$ 332.95
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11348047		Kit, Power Cord (no Plug)				$ 143.79
