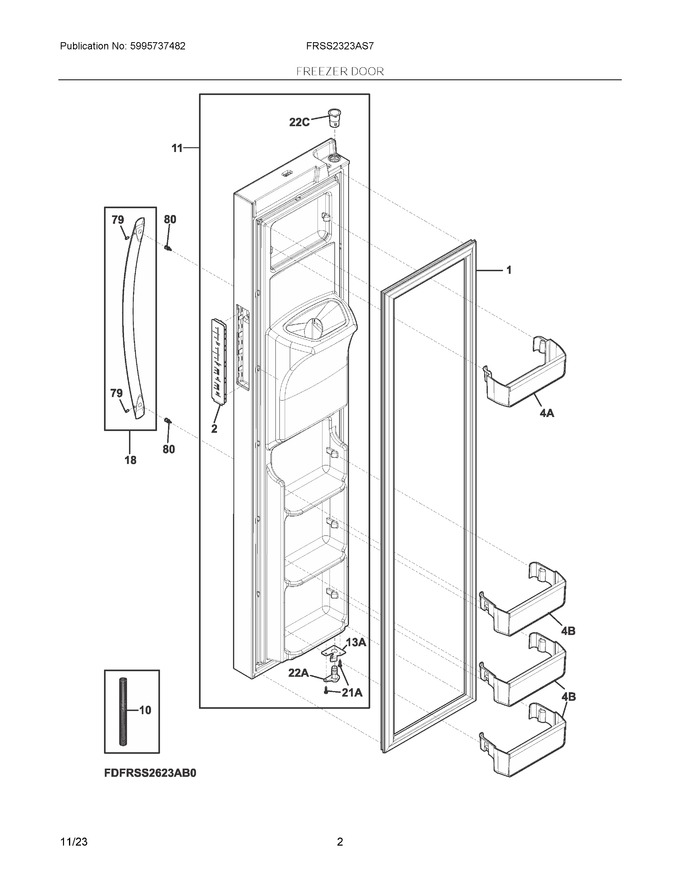

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door, Grey, Magnetic (Replaces: 241786012) |
|
$ 93.12 | |||||
| 2 | 5304533235 | User Interface, Assembly, Gray, Side Control, W/pcb-overlay |
|
Immediately | $ 140.86 | ||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 5304527274 | Door Assembly, Freezer, Stainless, Complete |
|
$ 638.89 | |||||
| 18 | 5304511770 | Handle, Door, Stainless, W/set Screws |
|
Immediately | $ 229.03 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 13A | 5304527380 | Stop, Door, Black, Freezer |
|
$ 15.17 | |||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 5304532161 | Bushing, Door Closer, Lower, Freezer |
|
$ 4.35 | |||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 19.13 | ||||
| 4A | 5304536367 | Bin Assembly, Pseudo, Upper (Replaces: 5304527145) |
|
Immediately | $ 15.08 | ||||
| 4B | 5304527146 | Bin Assembly, Pseudo, Lower |
|
- | |||||
| NI | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218976439 | Tube, Water, 32", Yellow, Valve, To Door |
|
$ 19.13 |
