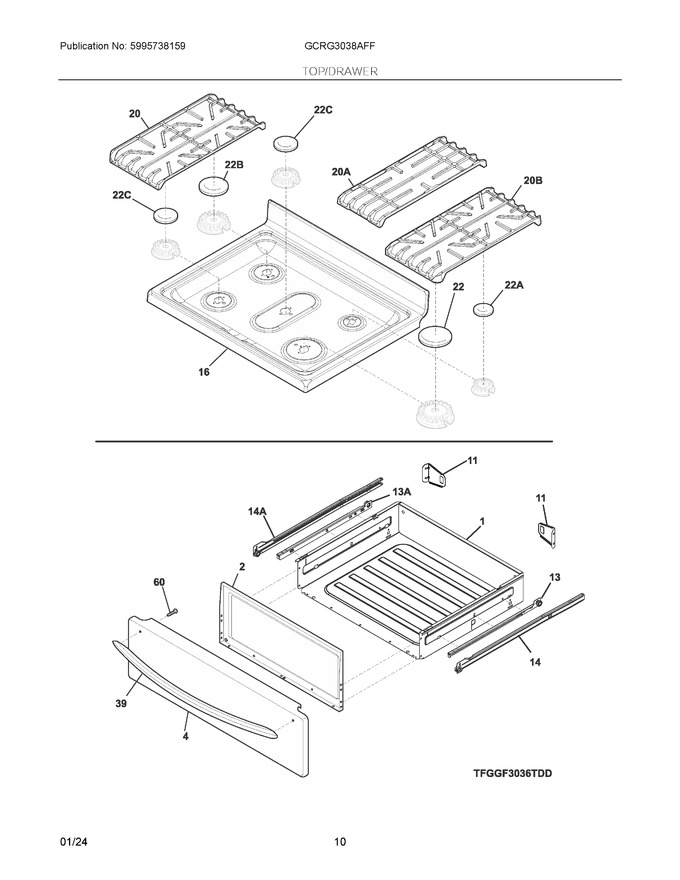

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807082503		Drawer-utility Raw With Stop, 1		Appelez-nous	-
2	5304527988		Liner, Drawer			Immediately	$ 26.54
4	5304517477		Panel, Drawer, Stainless				$ 182.46
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
16	316610014		Main Top, Black			Immediately	$ 253.03
20	808754701		Grate, Black, Lh				$ 193.49
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 28.05
39	316554010		Handle, Door/drawer, Stainless			Immediately	$ 168.44
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
20A	808754801		Grate, Black, Center				$ 197.04
20B	808754702		Grate, Black, Rh				$ 193.49
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 18.95
22B	5304527845		Cap-burner, 14k, Black, Matte, 3mm				$ 22.75
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 36.55
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
