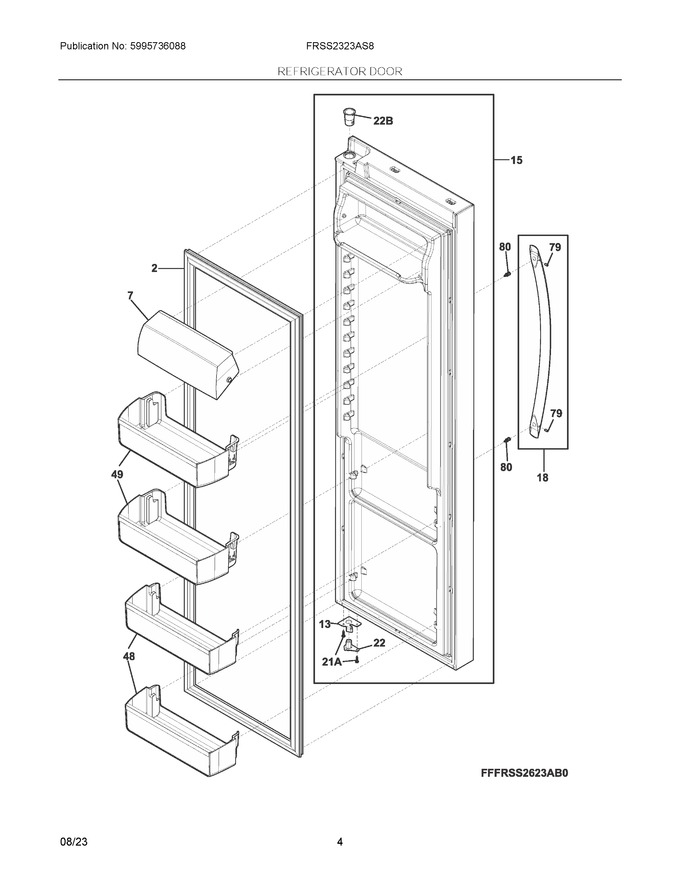

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786011) |
|
Immediately | $ 94.66 | ||||
| 7 | 5304526901 | Cover, Compartment, Dairy |
|
Immediately | $ 106.83 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 15.17 | |||||
| 15 | 5304527281 | Door Assembly, Fresh Food, Stainless, Complete |
|
$ 698.57 | |||||
| 18 | 5304511770 | Handle, Door, Stainless, W/set Screws |
|
Immediately | $ 229.03 | ||||
| 22 | 5304532162 | Bushing, Hinge, Black, Lower |
|
$ 5.01 | |||||
| 48 | 5304536369 | Bin Assembly, 2 Liter, Ff Door (Replaces: 5304527144) |
|
Immediately | $ 38.66 | ||||
| 49 | 5304536370 | Bin Assembly, Gallon, Ff Door (Replaces: 5304527143) |
|
$ 45.69 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 19.13 |
