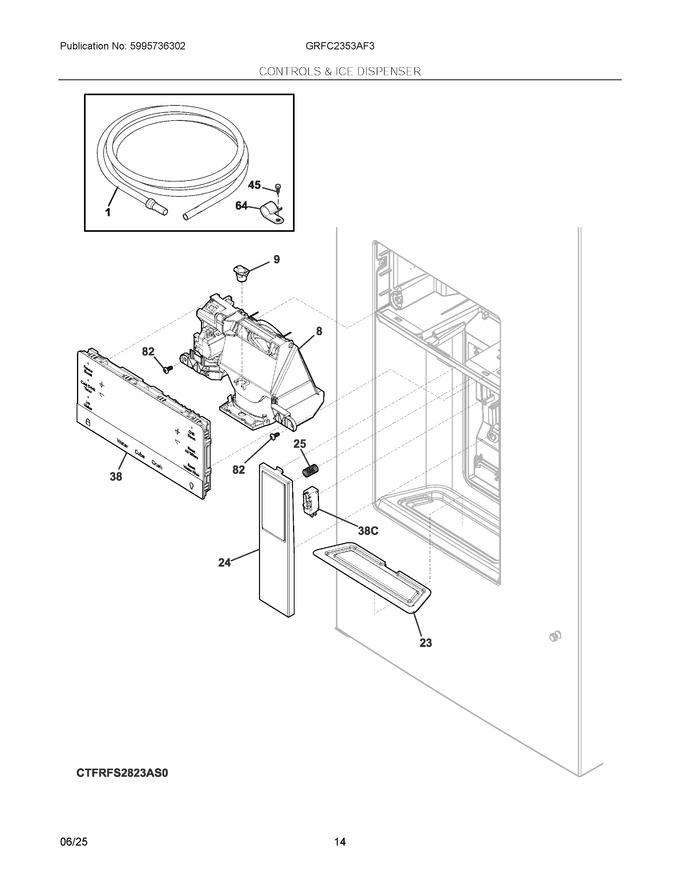

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976448 | Tube, Water, 92.52", Natural, Door |
|
Immediately | $ 18.72 | ||||
| 8 | 5304533221 | S/a Pur-i&w Module Gray, 8 # (Replaces: 5304532563) |
|
Immediately | $ 168.98 | ||||
| 9 | 5304531019 | Guide-water Tube, 9 |
|
$ 13.55 | |||||
| 9 | 5304527100 | Guide, Water Tube, Dispenser |
|
$ 9.86 | |||||
| 23 | 5304527042 | Tray, Drip, Stainless |
|
$ 14.76 | |||||
| 24 | 5304530689 | Actuator, Dispenser, Stainless |
|
$ 26.69 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 38 | 5304530929 | Control Assembly, Uib & Dispenser, Stainless, W/membrane |
|
Immediately | $ 197.57 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 241870104 | Switch, Disp Paddle |
|
Immediately | $ 20.33 | ||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 5304530940 | Harness, Wiring, Door/dispenser |
|
Immediately | $ 134.23 | ||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
