01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

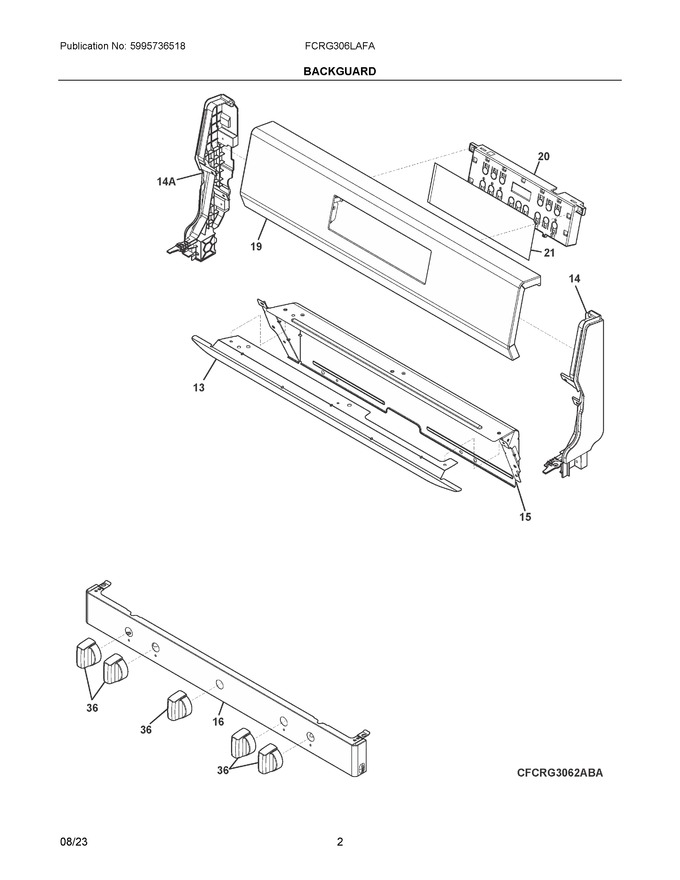

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304528483		Panel, Manifold, Stainless				$ 146.61
19	5304535783		Panel, Backguard, Stainless		Appelez-nous	-
20	5304538422		Controller, Electronic, Oven, Ui305g   (Replaces: 5304534819)			Immediately	$ 135.33
21	5304534822		Overlay, Controller, Black, Ui305g			Immediately	$ 16.41
36	5304509064		Knob, Stainless				$ 66.74
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
