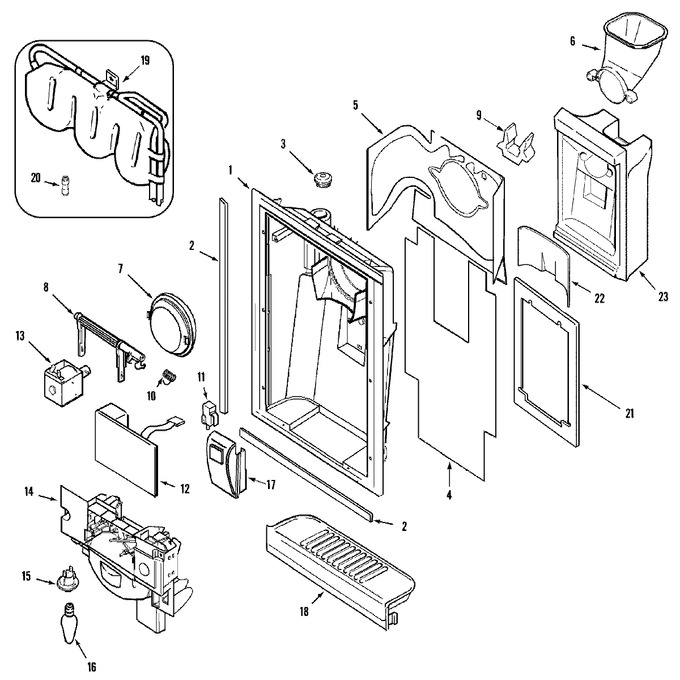

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61003307 | Screw | 10 |
|
- | ||||
| 1 | 61004675 | Housing, Fountain (wht) | 10 |
|
- | ||||
| 1 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 2 | 61003286 | Tape (1ft.) | 10 |
|
$ 7.25 | ||||
| 3 | 61003300 | Grommet, Water Tube | 10 |
|
- | ||||
| 4 | 61003304 | Foil, Ftn. Back | 10 |
|
$ 5.59 | ||||
| 5 | 61005835 | Heater, Fountain | 10 |
|
- | ||||
| 6 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 6 | 61004677 | Chute, Ice | 10 |
|
$ 22.17 | ||||
| 7 | WP61005883 | Assy., Ice Door (Replaces: 61005883) | 10 |
|
$ 26.76 | ||||
| 8 | 61005886 | Strike, Ice Door | 10 |
|
$ 5.65 | ||||
| 9 | 61005811 | Insulation, Ice Chute | 10 |
|
- | ||||
| 10 | 61004388 | Spring, Ftn. Return | 10 |
|
$ 7.72 | ||||
| 11 | 61005520 | Switch, Limit | 10 |
|
$ 21.62 | ||||
| 11 | 415041-35 | Screw | 10 |
|
- | ||||
| 12 | 61005836 | Board, Control | 10 |
|
$ 37.58 | ||||
| 12 | 61005372 | Barrier | 10 |
|
$ 5.95 | ||||
| 13 | WP488234 | Screw (Replaces: 61003297) | 10 |
|
$ 6.07 | ||||
| 13 | 61005885 | Solenoid | 10 |
|
- | ||||
| 14 | 61003688 | Bracket, Fountain (wht) | 10 |
|
- | ||||
| 14 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 15 | 61001262 | Adapter, Receptacle | 10 |
|
- | ||||
| 15 | 70458-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 15 | 61001263 | Clip, Receptacle | 10 |
|
- | ||||
| 16 | 61001236 | Bulb, Light | 10 |
|
- | ||||
| 17 | 61004441 | Pad, Actuator (lt. Gry) | 10 |
|
$ 21.70 | ||||
| 18 | 61003309 | Grill (wht) | 10 |
|
$ 30.31 | ||||
| 19 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 19 | 61003689 | Tank Assy., Water | 10 |
|
$ 89.36 | ||||
| 20 | WP2300868 | Union, Reducing (5/16``-5/16``) (Replaces: 61005808) | 10 |
|
Immediately | $ 26.15 | |||
| 21 | 61005809 | Insulation, Hsg. Perimeter | 10 |
|
- | ||||
| 22 | 61005810 | Insulation, Hsg. Rear | 10 |
|
- | ||||
| 23 | 61005373 | Insulation, Ftn. (styrofoam) | 10 |
|
- | ||||
| NI | 61005837 | Wire Harness, Ftn. | 10 |
|
- |
