01 - Cover Sheet

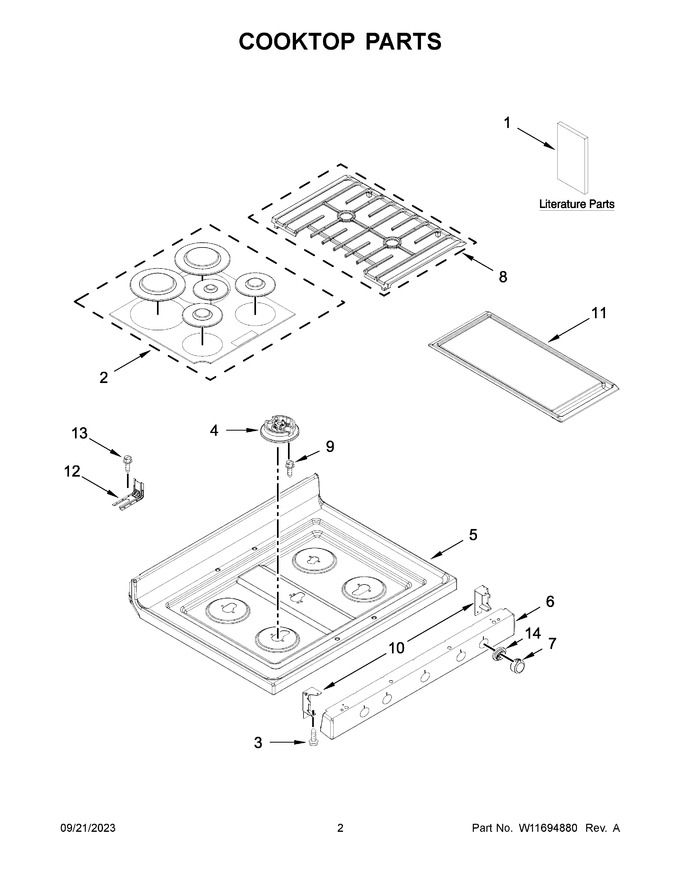

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11645717 | Owners Manual |
|
- | |||||
| 2 | WPW10183374 | Burner Cap Kit (black) (Replaces: W10183374) |
|
$ 171.59 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front And Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 5 | W11241183 | Cooktop (stainless) (Replaces: W10294800) |
|
$ 488.81 | |||||
| 6 | W10724442 | Panel, Manifold (stainless) |
|
$ 300.65 | |||||
| 7 | W11030413 | Knob (stainless) (Replaces: W10786063) |
|
Immediately | $ 68.58 | ||||
| 8 | W11382188 | Grate Kit (set Of 2) (black) (Replaces: W11241654) |
|
$ 326.69 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 10 | W10289096 | Bracket, Manifold (left) |
|
$ 131.91 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 51.00 | ||||
| 12 | W11447673 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.64 | ||||
| 13 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 14 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 97.19 | ||||
| 10A | W10106419 | Bracket, Manifold (right) |
|
- | |||||
| 1A | W11645711 | Quick Start Guide |
|
- | |||||
| 1B | W11565451 | Tech Sheet |
|
- | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear And Center) (Replaces: W10515454) |
|
$ 99.21 | |||||
| 4B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 85.10 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11461074 | Harness, Main |
|
$ 150.99 | |||||
| NI | W11161843 | Harness, Bake And Broil (Replaces: W10753750) |
|
$ 185.62 | |||||
| NI | W10809928 | Harness, Cooktop |
|
$ 177.39 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- |
