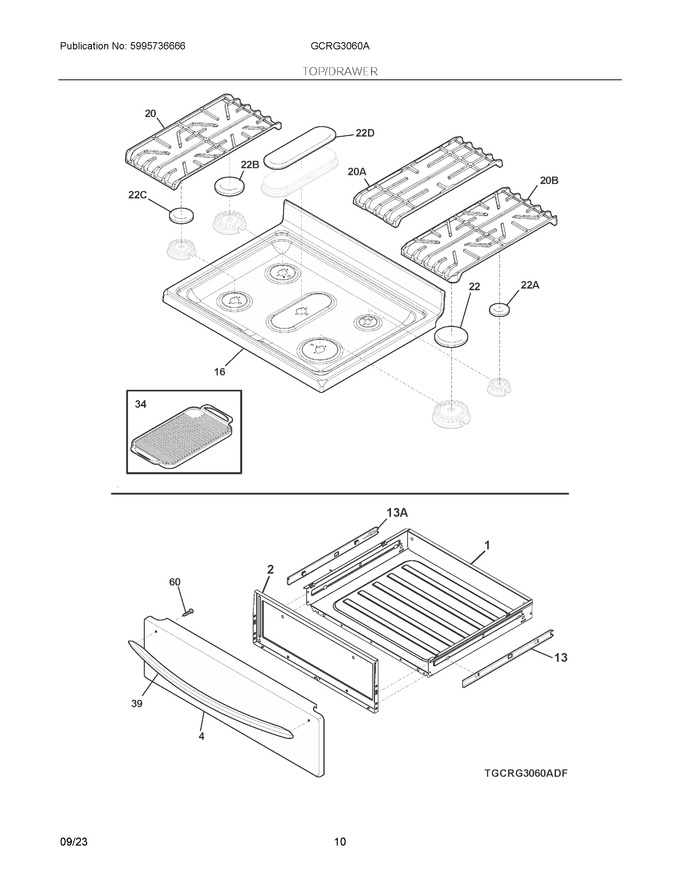

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807082503 | Drawer-utility Raw With Stop, 1 |
|
- | |||||
| 2 | 5304527988 | Liner, Drawer |
|
Immediately | $ 26.54 | ||||
| 4 | 5304517133 | Panel, Drawer, Black Stainless |
|
$ 193.99 | |||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 76.06 | ||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 15.17 | ||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 58.82 | |||||
| 16 | 316610014 | Main Top, Black |
|
Immediately | $ 253.03 | ||||
| 20 | 5304521078 | Grate, Burner, Black, Lh Side |
|
$ 196.42 | |||||
| 22 | 5304527846 | Cap-burner, 17k, Black, Matte, 3mm |
|
$ 28.05 | |||||
| 34 | 5304495353 | Griddle |
|
Immediately | $ 166.84 | ||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 39 | 316554009 | Handle, Door/drawer, Black Stainless, W/spacers |
|
$ 189.41 | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 20A | 5304521079 | Grate, Burner, Black, Center |
|
$ 201.73 | |||||
| 20B | 5304521077 | Grate, Burner, Black, Rh Side |
|
$ 212.69 | |||||
| 22A | 5304524590 | Cap-burner, 5a, Black, Matte, 3mm |
|
$ 18.95 | |||||
| 22B | 5304527845 | Cap-burner, 14k, Black, Matte, 3mm |
|
$ 22.75 | |||||
| 22C | 5304508442 | Cap-burner, 9.5k, Black, Matte, 3mm (Replaces: 5304527843) |
|
Immediately | $ 36.55 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 72.30 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 13.46 | |||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 12.89 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 10.02 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NIA | 5304505563 | Wire, Ground, Spark Module, W/connector |
|
Immediately | $ 16.23 |
