SELECT A DIAGRAM

01 - Cover Sheet

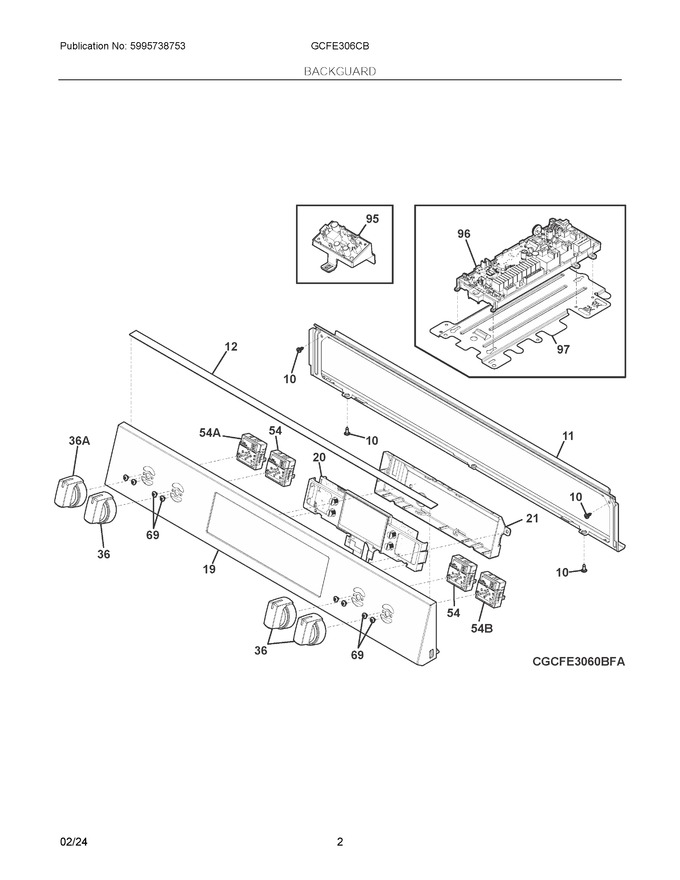

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304528554		Seal, Smoothtop			Immediately	$ 31.86
19	5304534721		Control Panel, Assembly, Black Stainless				$ 191.67
20	5304538605		Controller, Electronic, Oven, Ui730   (Replaces: 5304534729)			Immediately	$ 241.72
21	5304533954		Housing, Control		Appelez-nous	-
36	5304528711		Knob, Infinite Switch, Black Stainless, Single		Appelez-nous	-
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing				$ 86.95
96	140171069028		Pc Board, Assembly, Ovc   (Replaces: 5304534719)			Immediately	$ 146.53
97	5304528373		Bracket, Ovc Board			Immediately	$ 22.13
36A	5304528712		Knob, Infinite Switch, Black Stainless, Dual				$ 75.11
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Turbo Boil   (Replaces: 5304522965)			Immediately	$ 34.36
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 23.16
NI	5304535876		Harness-energy Regulator 5s, * #				$ 110.74
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304535366		Harness, Wiring, Knobs, Backlit				$ 74.69
NIA	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
