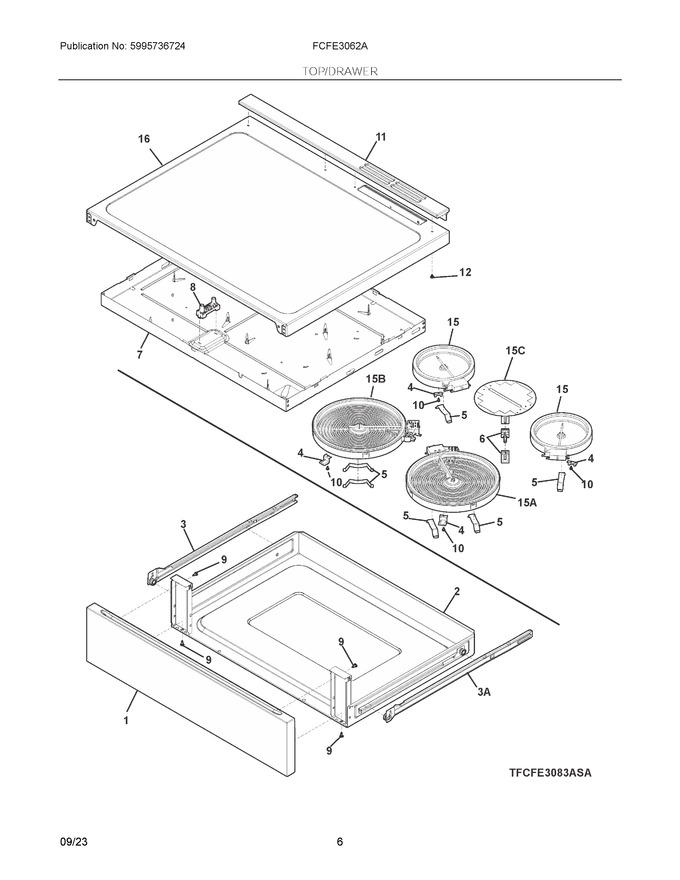

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526301		Panel, Drawer, White, Outer			Immediately	$ 84.68
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304526627		Spring, Element Support			Immediately	$ 8.19
6	5304528474		Clip, Spring, Element				$ 7.59
7	5304533428		Burner Box, Smoothtop		Appelez-nous	-
8	5304538115		Light, Indicator, Hot Surface   (Replaces: 5304526251)				$ 13.33
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304533456		Screw, T15 Self Tap, 3.5 X 8, Element Bracket				$ 3.50
11	5304528650		Trim, Vent, White				$ 77.72
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304528620		Smoothtop, Assembly, Steel/glass, White/black			Immediately	$ 239.54
15A	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 216.16
15B	5304533520		Element, Radiant, 9/6", Top, 3000w			Immediately	$ 90.14
15C	140273621015		Element, Radiant, 100w, Warmer   (Replaces: 5304526286)			Immediately	$ 35.77
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304529019		Harness, Wiring, Surface Element			Immediately	$ 106.93
