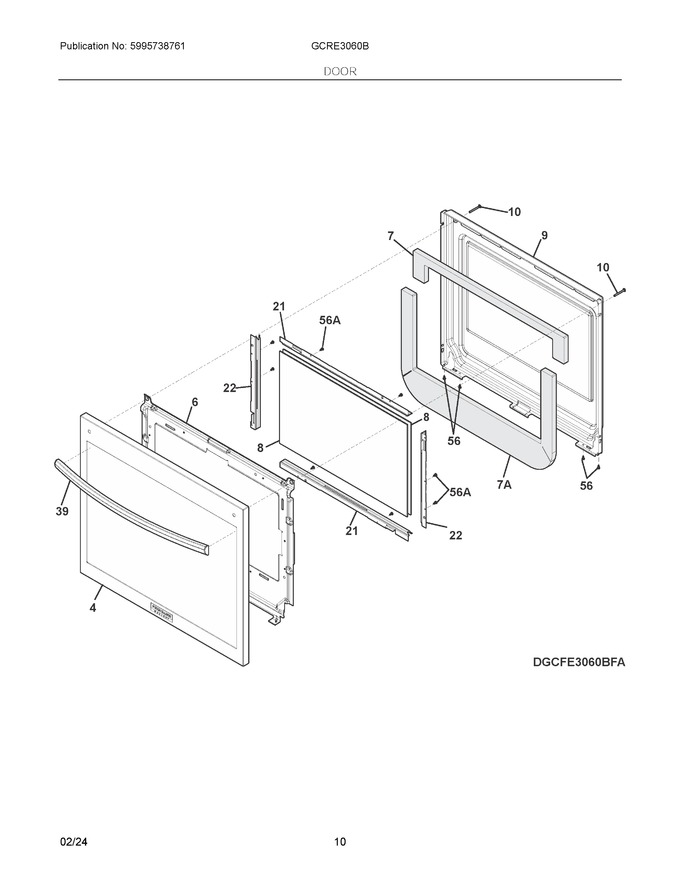

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304528493 | Door Assembly, Outer, Ez Care Stnlss, W/badge |
|
Immediately | $ 250.92 | ||||
| 6 | 5304528106 | Shield, Wool |
|
Immediately | $ 98.04 | ||||
| 7 | 140293846022 | Insulation, Door, Top (Replaces: 5304526656) |
|
Immediately | $ 7.15 | ||||
| 8 | 5304526387 | Glass, Door, Shr, Inner, 2 Side Coating |
|
Immediately | $ 166.09 | ||||
| 9 | 5304528160 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 140.53 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
$ 2.28 | |||||
| 21 | 5304526285 | Bracket, Glass Pack, Horizontal |
|
$ 9.10 | |||||
| 22 | 5304526284 | Bracket, Glass Pack, Verticle |
|
Immediately | $ 12.13 | ||||
| 39 | 140172171054 | Handle, Door, Stainless (Replaces: 5304534841) |
|
Immediately | $ 48.57 | ||||
| 56A | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.03 | |||||
| 7A | 5304528502 | Insulation, Door, Bottom |
|
Immediately | $ 16.82 | ||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 |
