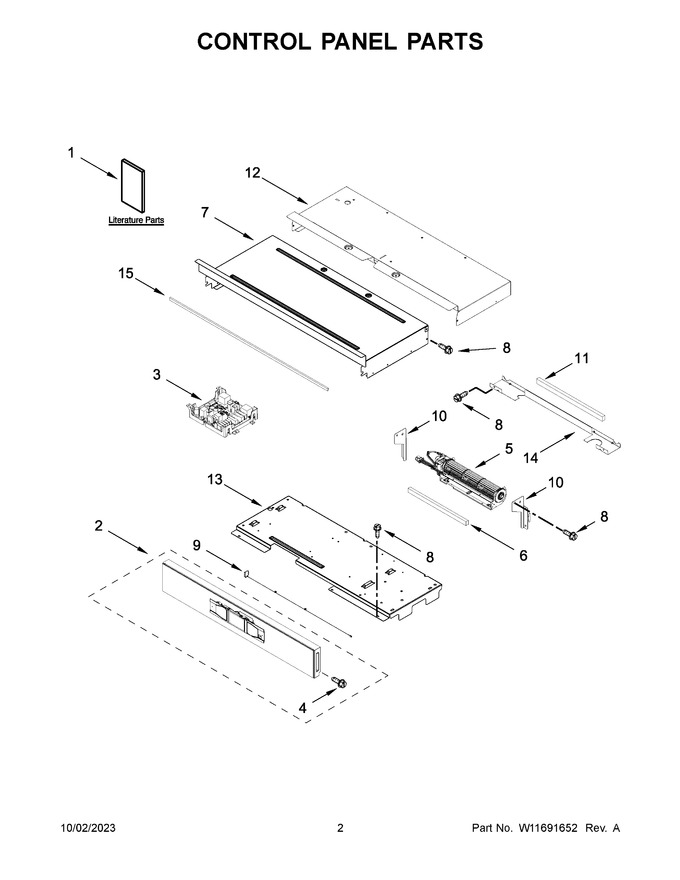

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11656312 | Owner's Manual |
|
- | |||||
| 2 | W11659261 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W11467907) |
|
Immediately | $ 756.09 | ||||
| 3 | W11649350 | Control, Copernicus (Replaces: W11585754) |
|
Immediately | $ 254.79 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 12.62 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 332.78 | ||||
| 6 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 7 | W11821591 | Cover, 30 In Chassis Top Front (Replaces: W11244445) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11537624 | Antenna (Replaces: W11409842) |
|
$ 90.91 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10728475 | Gasket, Rubber |
|
$ 32.68 | |||||
| 12 | W11223325 | Cover, 30 In Chassis Top Back |
|
$ 73.52 | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11553919 | Quick Start Guide |
|
- | |||||
| 1B | W11601356 | Tech Sheet |
|
- | |||||
| 2A | W11659262 | Assembly, Control Panel (used In Black And Stainless Models) (white) (Replaces: W11568103) |
|
$ 759.65 | |||||
| NI | W11464639 | Harness, Main |
|
$ 237.24 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W10487999 | Clip, Harness |
|
$ 18.10 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 18.35 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 11.55 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 28.24 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 52.97 | |||||
| NI | W11607072 | Bag, Hardware (Replaces: W11547720) |
|
Immediately | $ 12.92 | ||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11256626 | Harness, Signal |
|
- | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 34.89 |
