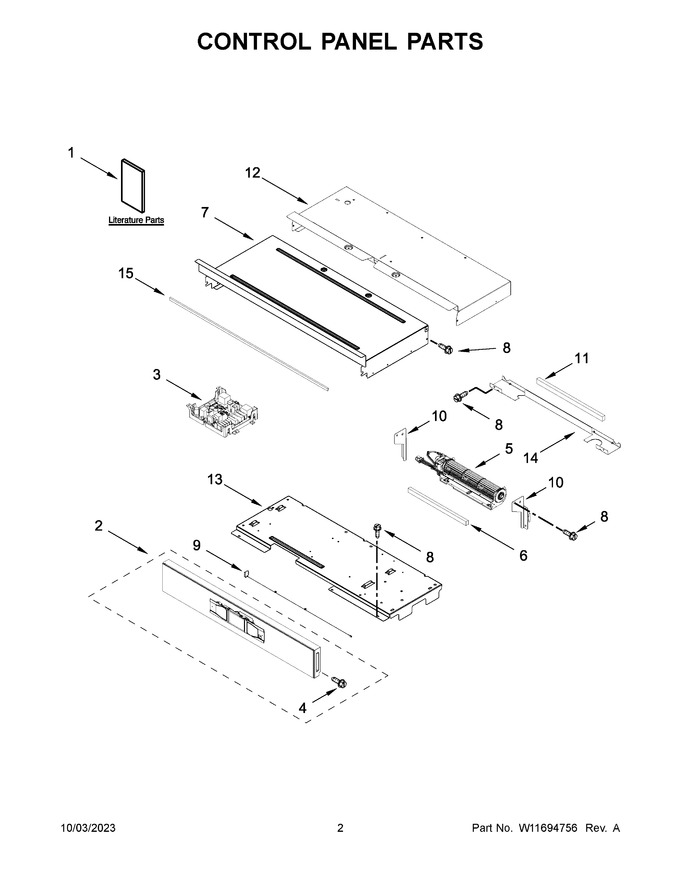

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11656312		Owner's Manual		Appelez-nous	-
2	W11659261		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11467907)			Immediately	$ 756.09
3	W11649350		Control, Copernicus   (Replaces: W11585754)			Immediately	$ 254.79
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 12.62
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 332.78
6	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
7	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11537624		Antenna   (Replaces: W11409842)				$ 90.91
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10728475		Gasket, Rubber				$ 32.68
12	W11223325		Cover, 30 In Chassis Top Back				$ 73.52
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11553919		Quick Start Guide		Appelez-nous	-
1B	W11601356		Tech Sheet		Appelez-nous	-
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W11256626		Harness, Signal		Appelez-nous	-
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 28.24
NI	W10655464		Bracket, Harness				$ 34.89
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 52.97
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 18.10
NI	4448664		Clamp, Conduit				$ 18.35
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 12.92
NI	4450800		Screw, Grounding				$ 11.55
NI	W11464639		Harness, Main				$ 237.24

    View Diagram in Separate Window       Print Part List
