SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

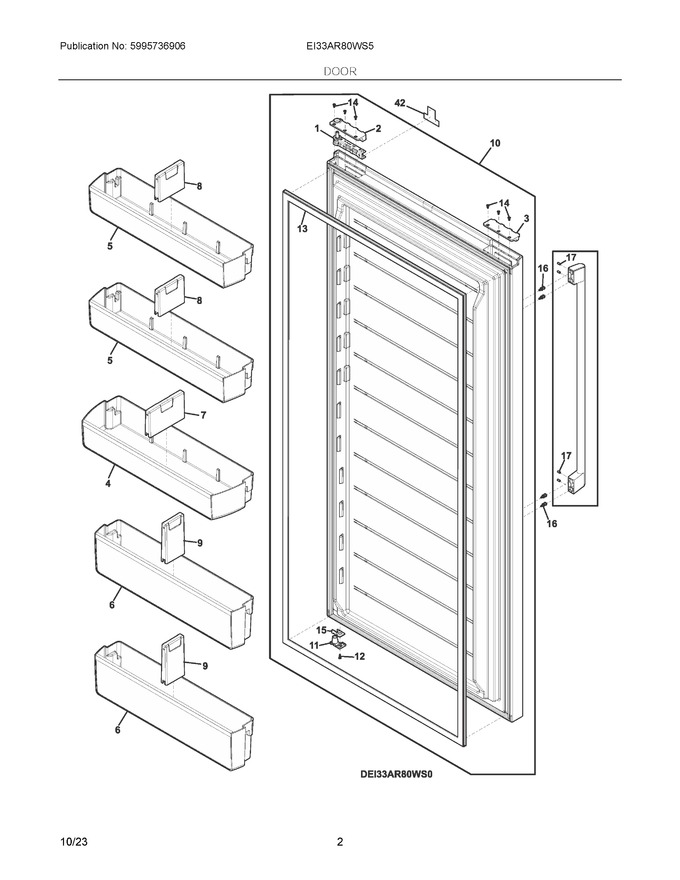

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524643		Closer Assembly, Door, Rh Upper			Immediately	$ 96.26
2	5304524623		Cover, Door Cap, Gray, Rh, Closer Side				$ 14.46
3	5304524626		Cover, Door Cap, Gray, Lh, Non-closer Side				$ 14.15
4	5304524631		Bin, Door, Gallon			Immediately	$ 149.27
5	5304539737		Bin, Door, 2 Liter   (Replaces: 5304524632)			Immediately	$ 115.81
6	5304539738		Bin, Door, Tall Items   (Replaces: 5304524633)		Appelez-nous	-
7	5304524846		Divider, Gallon, Door Bin			Immediately	$ 28.92
8	5304524634		Divider, Door Bin, 2 Liter			Immediately	$ 28.92
9	5304524635		Divider, Door Bin, Tall Items				$ 30.37
10	5304524740		Door Assembly, Complete, Stainless, Rh Swing			Immediately	$ 738.83
11	5304524745		Bearing, Door, Lower			Immediately	$ 7.96
12	241953903		Screw, Door Stop, Lower				$ 5.07
13	140190906879		Gasket, Door, Grey   (Replaces: 5304524888)				$ 111.73
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
15	5304524767		Stop, Door, Lower Bearing			Immediately	$ 11.38
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
17	218755410		Screw-set, 10-32 X .354 In		Appelez-nous	-
18	5304524807		Handle Assembly, Stainless, W/set Screws			Immediately	$ 182.18
42	5304532471		Label Assembly, Nameplate, Chrome, Electrolux   (Replaces: 5304524867)				$ 18.27
NIA	241601002		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
