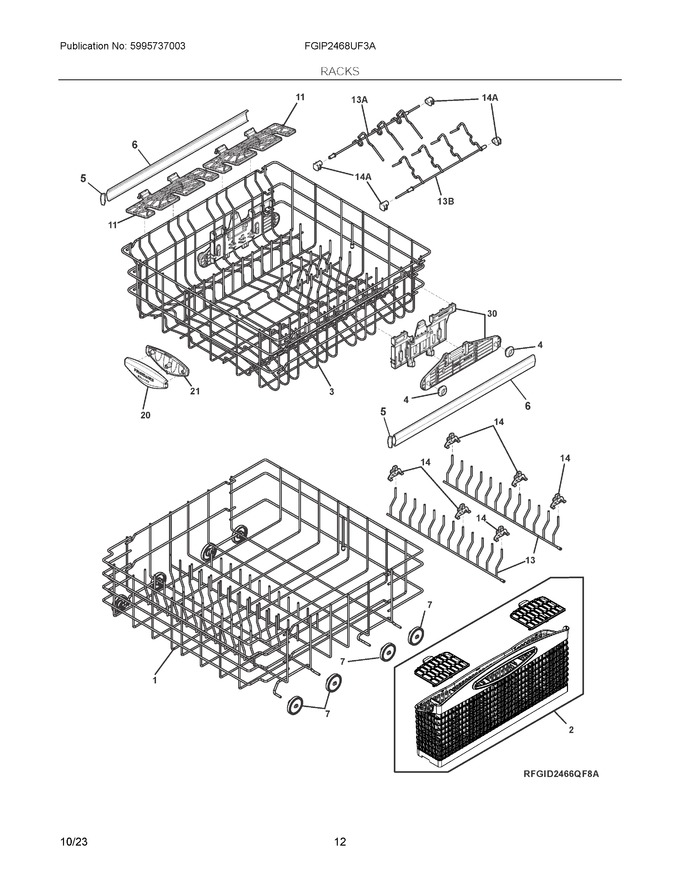

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304531668 | Rack Assembly, Lower |
|
- | |||||
| 2 | 5304521739 | Basket Assembly, Silverware, W/2 Lids |
|
Immediately | $ 44.46 | ||||
| 3 | 5304532989 | Rack Assembly, Upper |
|
- | |||||
| 4 | 5304535381 | Wheel Assy., Upper Rack, (4) (Replaces: 5304507440) |
|
Immediately | $ 10.05 | ||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.43 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 50.42 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware (Replaces: 5304506507) |
|
$ 7.42 | |||||
| 13 | 5304507394 | Fence, Fold Down, Lower Rack, (2), Full Length |
|
Immediately | $ 44.54 | ||||
| 14 | 5304532952 | Bracket, Fold Down Fence, Lower Rack, (6) (Replaces: 5304507395) |
|
Immediately | $ 4.35 | ||||
| 20 | 5304506509 | Handle, Front, Upper Rack |
|
$ 13.74 | |||||
| 21 | 5304504913 | Handle, Rear, Upper Rack |
|
$ 13.74 | |||||
| 30 | 5304532268 | Rack Adjustment, Assembly, Earl Gray, Rh |
|
$ 26.85 | |||||
| 13A | 5304532949 | Fence, Multi, 3 Wire, Grey, Lh (Replaces: 5304506534) |
|
$ 19.28 | |||||
| 13B | 5304532950 | Fence, Multi, 4 Wire, Grey, Rh (Replaces: 5304506535) |
|
Immediately | $ 19.76 | ||||
| 14A | 5304506508 | Bracket, Multifence, Upper Rack |
|
Immediately | $ 5.79 | ||||
| NIA | 5304532269 | Rack Adjustment, Assembly, Earl Gray, Lh |
|
$ 26.85 |
