SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram

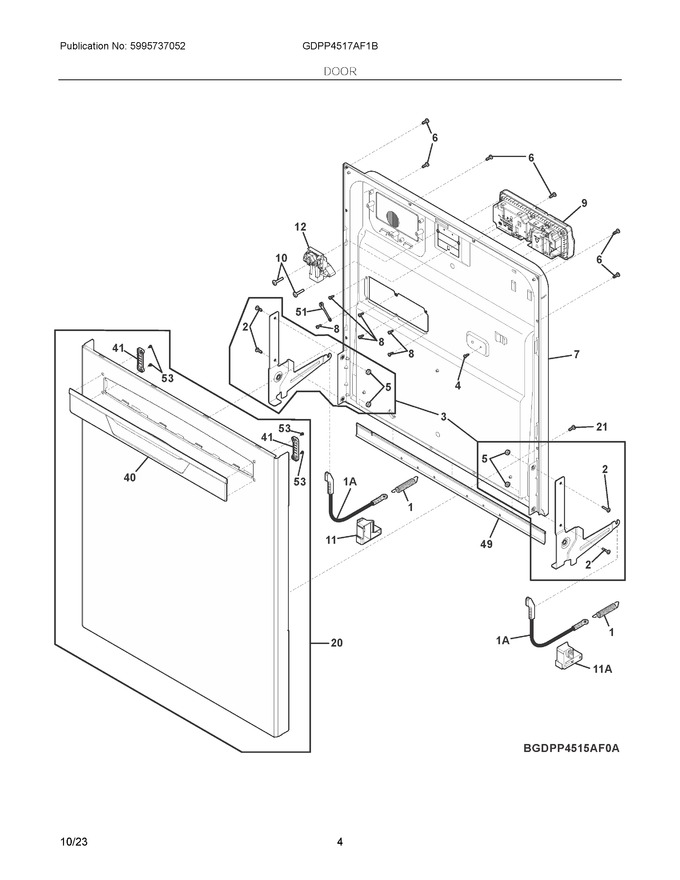

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154579101		Spring, Friction Pulley, (2)			Immediately	$ 40.50
2	154093301		Screw, Arm Assy, (4)			Immediately	$ 2.12
3	5304513274		Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts			Immediately	$ 66.56
4	808326801		Screw, Hex Hd, 8-18 X .4, W/washer   (Replaces: 154825401)				$ 2.84
5	154079601		Nut, Arm Assy, And Handle Mtg.				$ 0.41
6	154783102		Screw, Plt, 8-10, Dark Finish		Appelez-nous	-
7	5304532799		Liner Assembly, Door, W/wiper			Immediately	$ 131.76
8	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
9	5304532199		Dispenser, Det/rinse Aid, W/level Ind.				$ 65.18
10	154103702		Screw, Latch Mtg, (2)				$ 13.46
11	154579201		Pulley, Friction, Lh			Immediately	$ 47.48
12	5304527418		Latch Assembly, Door   (Replaces: 5304516818)			Immediately	$ 29.00
20	5304532267		Door Assembly, Outer, Stainless, W/handle				$ 181.22
21	154754702		Screw, Truss Hd, 8-18 Type Ab, Dark Finish				$ 5.60
40	5304532248		Handle, Door, Nickel		Appelez-nous	-
41	5304532266		Bracket, Handle		Appelez-nous	-
49	5304532198		Gasket, Door Wiper, Black, Bottom			Immediately	$ 9.06
51	154320301		Clamp, Drip Loop, Wire				$ 62.69
53	5304502598		Screw, Rnd-hd, M3 X 5, Handle Mtg   (Replaces: 5304532265)			Immediately	$ 9.41
11A	154579202		Pulley, Friction, Rh			Immediately	$ 47.48
1A	154756401		Cable, Friction Pulley, (2)   (Replaces: 154578801)			Immediately	$ 11.89
NI	154647101		Hinge Pin, Arm Assy				$ 14.18
NI	154686401		Bearing, Hinge Pin				$ 10.63
NIA	5304529474		Seal, Wrap, Inner Door, Super J			Immediately	$ 7.85
NIA	5304525214		Shield, Dispenser Assy			Immediately	$ 10.13

    View Diagram in Separate Window       Print Part List
