01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

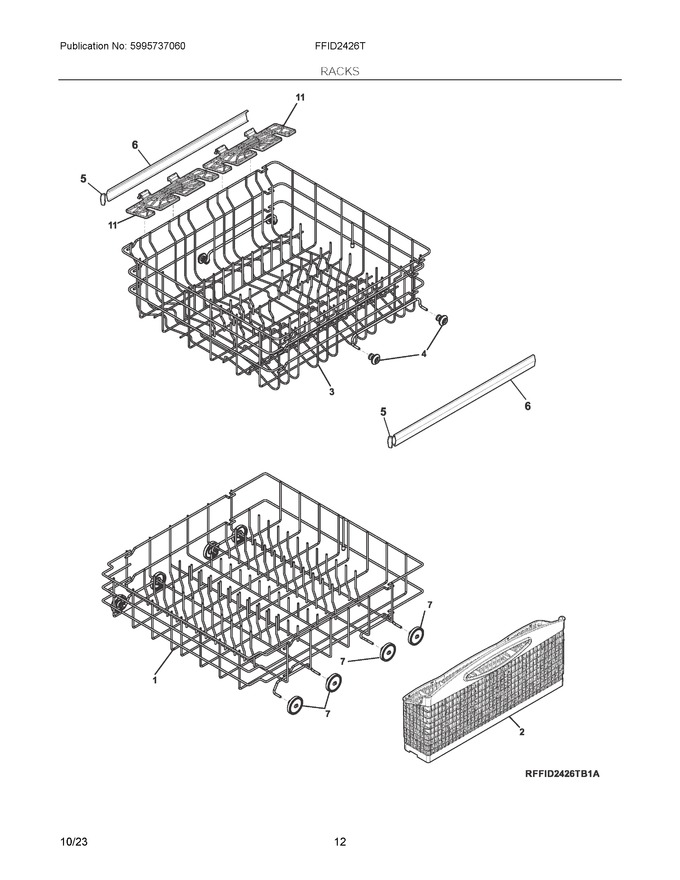

| 1 | 5304534201 | Rack Assembly, Lower |
|
- | |||||
| 2 | 140056808029 | Basket, Silverware (Replaces: 5304520949) |
|
- | |||||
| 3 | 5304534203 | Rack Assembly, Upper |
|
- | |||||
| 4 | 5304534218 | Wheel & Bushing Assy, Wheels, Upper Rack |
|
Immediately | $ 0.61 | ||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.43 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 50.42 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware (Replaces: 5304506507) |
|
$ 7.42 | |||||
| NI | 5304535550 | Nameplate, Rack Spacer, Grey (Replaces: 5304506527) |
|
$ 2.66 |
