01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

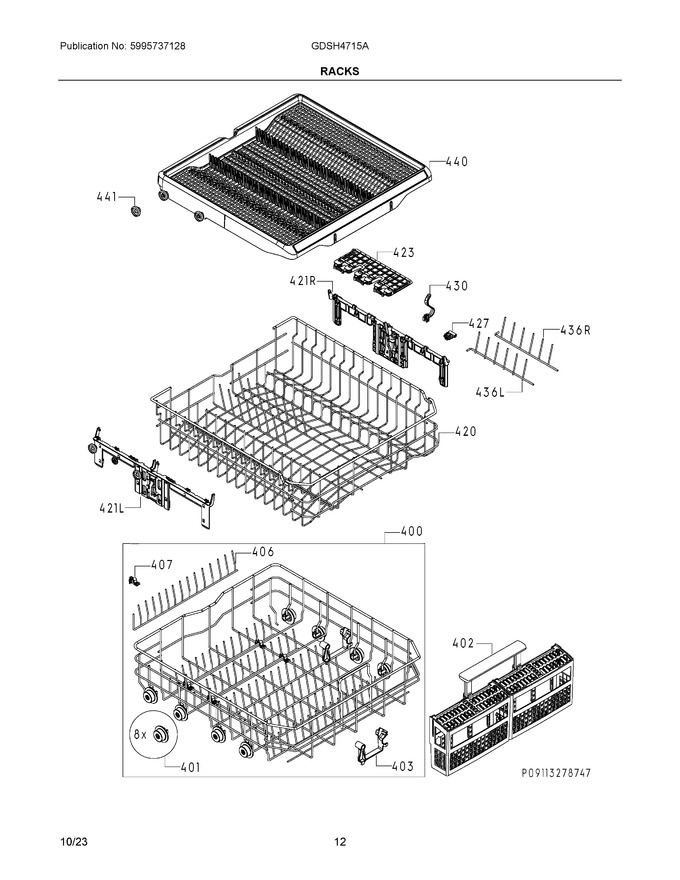

| 400 | 140066296207 | Rack Assembly, Lower, Silver (Replaces: A06629603) |
|
$ 161.87 | |||||
| 401 | 405507213 | Rack Roller, Kit, Lower |
|
$ 45.46 | |||||
| 402 | A00173221 | Cutlery Basket, Assembly, Grey |
|
- | |||||
| 403 | A23778002 | Clip, Cutlery Basket |
|
Immediately | $ 13.40 | ||||
| 406 | A06542001 | Partition, Lower Rack |
|
$ 102.95 | |||||
| 407 | 807282902 | Clip, Partition, Lower Rack |
|
$ 65.92 | |||||
| 420 | A00239833 | Rack Assembly, Upper, Silver |
|
$ 318.50 | |||||
| 423 | 808124102 | Shelf, Cup, Grey |
|
$ 171.00 | |||||
| 427 | A00141702 | Fixing Clamp, Partition, Upper |
|
$ 74.99 | |||||
| 430 | A00924504 | Clip, Cup |
|
$ 33.42 | |||||
| 440 | A20057805 | Tray, Cutlery, Gray, W/wheels |
|
- | |||||
| 441 | A17210301 | Wheel, Cutlery Tray, Grey |
|
- | |||||
| 421L | 808092517 | Adjustment, Upper Rack, Lh |
|
Immediately | $ 81.98 | ||||
| 421R | 808092518 | Adjustment, Upper Rack, Rh |
|
Immediately | $ 76.97 | ||||
| 436L | A00237001 | Partition, Upper Rack, Lh |
|
$ 160.61 | |||||
| 436R | 807077101 | Partition, Upper Rack, Rh |
|
$ 156.64 |
