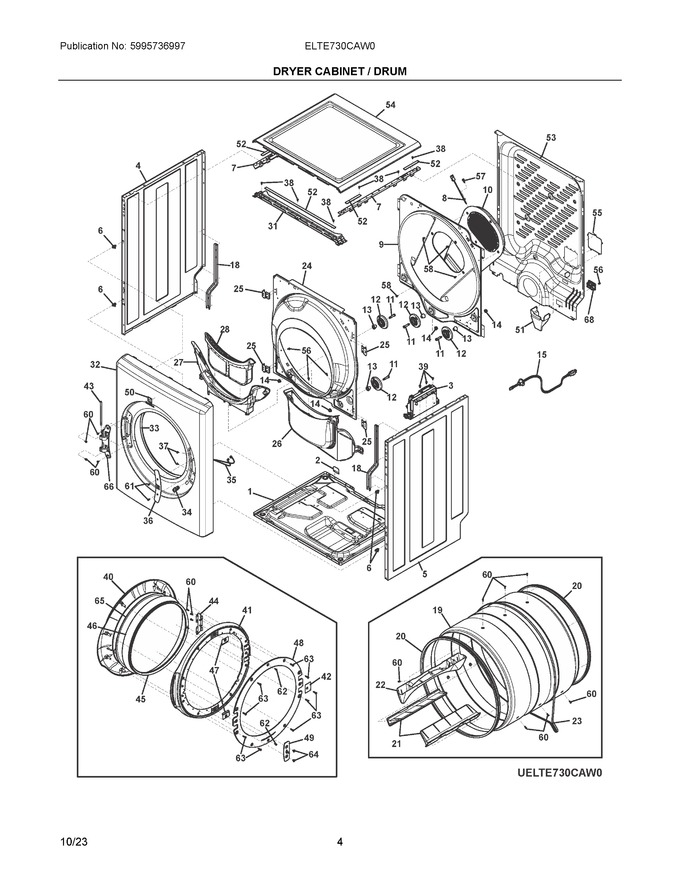

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134690212 | Base, Dryer, Washed |
|
$ 161.51 | |||||
| 2 | 137537100 | Cover, Back Sheet, Cutout |
|
- | |||||
| 3 | 5304536159 | Main Board, Assembly, Dryer, W/housing |
|
Immediately | $ 134.53 | ||||
| 4 | 5304536124 | Panel, Dryer Side, White, Lh |
|
- | |||||
| 5 | 5304536119 | Panel, Dryer Side, White, Rh |
|
- | |||||
| 6 | 5304505102 | Clip, Front Panel, (4) |
|
$ 13.74 | |||||
| 7 | 5304529787 | Brace, Side Panel |
|
- | |||||
| 8 | 5304520302 | Thermistor, Inlet |
|
Immediately | $ 53.96 | ||||
| 9 | 5304521410 | Bulkhead, Panel, White, Rear |
|
$ 195.92 | |||||
| 10 | 5304513571 | Duct Assembly, Heat, Rear |
|
$ 139.53 | |||||
| 11 | 5304529714 | Shaft, Drum Roller, Shoulder Bolt |
|
Immediately | $ 30.42 | ||||
| 12 | 5304523152 | Roller Wheel, Assembly, W/bearing |
|
Immediately | $ 30.31 | ||||
| 13 | 5304523154 | Spacer, Drum Roller |
|
Immediately | $ 26.76 | ||||
| 14 | 5304523153 | Nut, Lock |
|
Immediately | $ 10.94 | ||||
| 15 | 5304505408 | Cord, Power, 30amp 125, 250v, 4 Wire |
|
$ 194.62 | |||||
| 18 | 137029801 | Bracket, Reinforcement, Backsheet |
|
$ 33.26 | |||||
| 19 | 137610700 | Drum, Dryer Assy, 38", White |
|
Immediately | $ 383.44 | ||||
| 20 | 5304499489 | Seal, Felt, Purple Stitches, Drum |
|
Immediately | $ 56.69 | ||||
| 21 | 137610610 | Vane, Straight, White |
|
Immediately | $ 65.21 | ||||
| 22 | 5304531882 | Vane, Mixing, Smooth |
|
$ 20.24 | |||||
| 23 | 134719300 | Belt, "h", Poly V, 5 Rib |
|
Immediately | $ 68.68 | ||||
| 24 | 5304521391 | Bulkhead, Front, White |
|
$ 199.58 | |||||
| 25 | 5304505118 | Bracket, Bulkhead, (4) |
|
$ 14.46 | |||||
| 26 | 5304521401 | Duct Assembly, Air, W/foam Top Seal |
|
Immediately | $ 148.92 | ||||
| 27 | 5304535939 | Grill Assembly, Lint Filter, W/moist Senser |
|
$ 139.49 | |||||
| 28 | 140201067026 | Filter Assembly, Lint, Clamshell (Replaces: 5304529766) |
|
Immediately | $ 78.91 | ||||
| 31 | 5304513567 | Bracket, Front Panel |
|
- | |||||
| 32 | 5304535967 | Front Panel, Dryer, White |
|
Immediately | $ 195.38 | ||||
| 33 | 5304505111 | Gasket, Foam, Front Panel |
|
$ 81.91 | |||||
| 34 | 134813663 | Switch, Door, White |
|
Immediately | $ 60.78 | ||||
| 35 | 5304505258 | Harness, Wiring, Door Switch |
|
$ 44.39 | |||||
| 36 | 5304513568 | Latch Assembly, Door, W/cover |
|
Immediately | $ 28.43 | ||||
| 37 | 134742000 | Plug, Hinge Hole, White |
|
$ 10.85 | |||||
| 38 | 5304521493 | Screw, Pn Hd, #10-16 X .375, 7.85mm |
|
- | |||||
| 39 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 40 | 5304535945 | Frame, Outer Door, Dryer |
|
- | |||||
| 41 | 5304529789 | Frame, Inner Door |
|
$ 119.29 | |||||
| 42 | 5304536129 | Cover, Hinge |
|
- | |||||
| 43 | 5304529871 | Pin, Hinge |
|
Immediately | $ 30.37 | ||||
| 44 | 5304529788 | Bracket, Hinge |
|
Immediately | $ 138.80 | ||||
| 45 | 5304535899 | Gasket, Door Seal |
|
Immediately | $ 57.06 | ||||
| 46 | 5304504999 | Glass, Dryer Door, Black |
|
Immediately | $ 167.09 | ||||
| 47 | 5304505012 | Clamp, Door Glass, (2) |
|
Immediately | $ 18.79 | ||||
| 48 | 5304536136 | Ring, Door, Metal, Grey, Outer |
|
$ 128.25 | |||||
| 49 | 5304536127 | Strike, Dryer Door |
|
Immediately | $ 18.50 | ||||
| 50 | 5304535937 | Namplate, Dryer Door, Electrolux |
|
- | |||||
| 51 | 134792100 | Bracket, Main, Terminal |
|
$ 29.07 | |||||
| 52 | 137031800 | Cushion, Vibration, Top Panel |
|
Immediately | $ 8.51 | ||||
| 53 | 137560431 | Panel, Backsheet |
|
- | |||||
| 54 | 5304535900 | Work Top, White |
|
- | |||||
| 55 | 134694400 | Cover, Terminal Block |
|
$ 72.18 | |||||
| 56 | 131303300 | Screw, Pan Head, 10-16ab X 0.500, Locking |
|
- | |||||
| 57 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 58 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 60 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 61 | 137285100 | Screw, Pan Head, #8-18x.750 |
|
$ 17.53 | |||||
| 62 | 5304536126 | Screw, T-20 Typ B, 8-18 X 0.375 |
|
$ 8.53 | |||||
| 63 | 137087000 | Screw, Comb Pnhd B, #10-16x.75, (9) |
|
Immediately | $ 11.34 | ||||
| 64 | 137241000 | Screw, Quad Ph, 10-16 X 0.375 |
|
$ 10.63 | |||||
| 65 | 5304505119 | Shield, Heat, Door |
|
Immediately | $ 117.85 | ||||
| 66 | 5304535750 | Hinge Assembly, Nest |
|
Immediately | $ 106.07 | ||||
| 68 | 5304535981 | Cover, Rear Connection |
|
$ 115.10 | |||||
| NI | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 13.46 | |||||
| NI | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NI | 5304505259 | Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4) |
|
Immediately | $ 16.43 | ||||
| NIA | 131205500 | Screw, 1/4-14 X 0.625 |
|
$ 13.46 |
