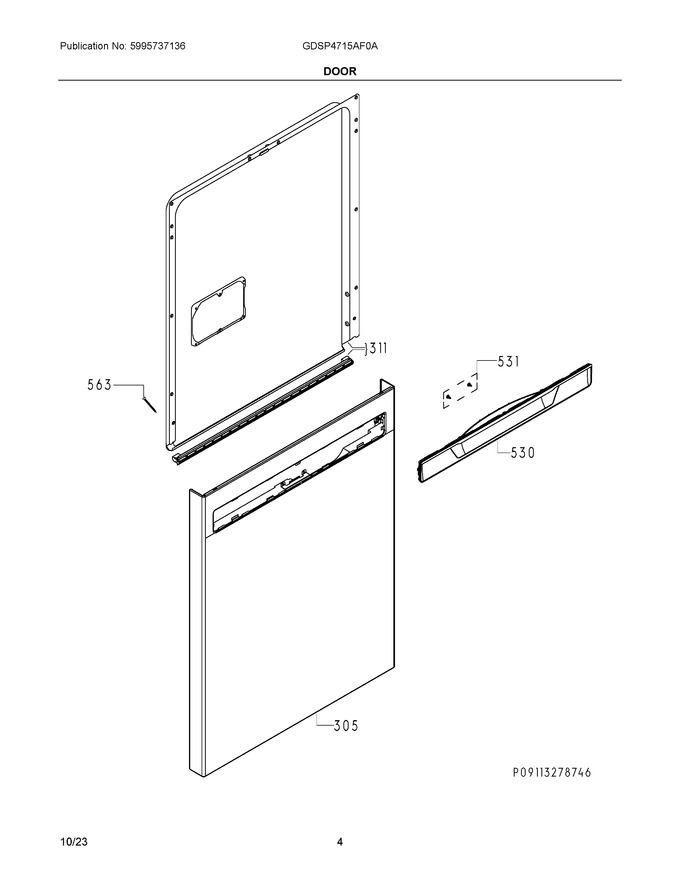

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
130	A05563601		Door Gasket, Bottom			Immediately	$ 64.04
305	8581174960618		Door, Outer, Stainless   (Replaces: 117496060)		Appelez-nous	-
311	A00010702		Liner, Door				$ 397.30
530	A22908901		Handle, Insert, Gray, Insert			Immediately	$ 146.32
531	5304533456		Screw, Kickplate, 3-5 X 9, (2)   (Replaces: 405530674)				$ 3.50
563	405538278		Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete				$ 16.34
NI	807952759		Mounting Kit			Immediately	$ 45.26
