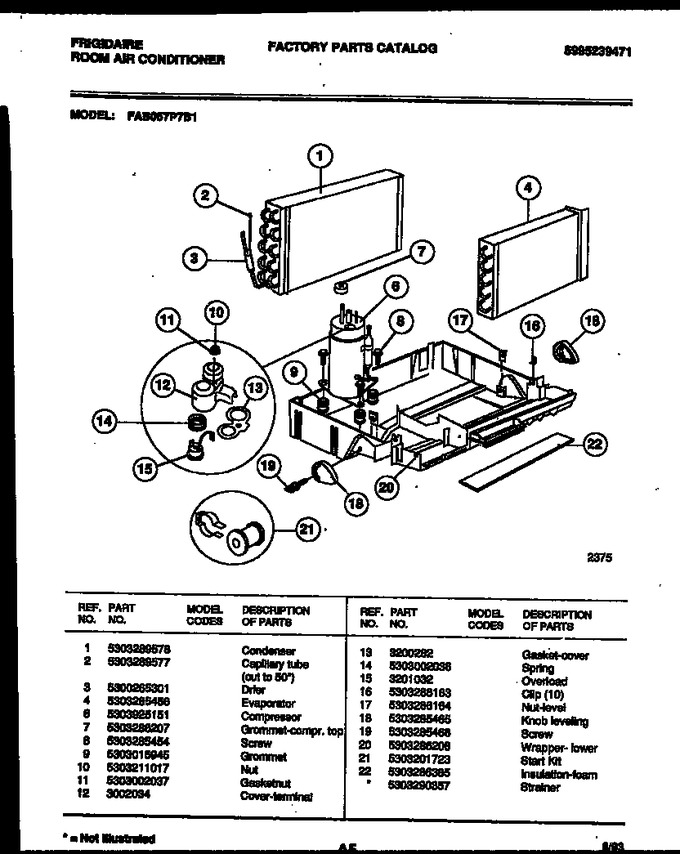

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303289578 | Condenser |
|
- | |||||
| 2 | 5303289577 | Capillary Tube (cut To 50``) |
|
- | |||||
| 3 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 4 | 5303285456 | Evaporator |
|
- | |||||
| 6 | 5303925151 | Compressor |
|
- | |||||
| 7 | 5303286207 | Grommet-compr Top |
|
- | |||||
| 8 | 5303285454 | Screw |
|
- | |||||
| 9 | 5303015945 | Grommet |
|
- | |||||
| 10 | 5303211017 | Nut |
|
- | |||||
| 11 | 5303002037 | Gasket-nut |
|
- | |||||
| 12 | 3002034 | Cover-terminal |
|
- | |||||
| 13 | 3200282 | Gasket-cover |
|
- | |||||
| 14 | 5303002036 | Spring |
|
- | |||||
| 15 | 3201032 | Overload |
|
- | |||||
| 16 | 5303286163 | Clip (10) |
|
- | |||||
| 17 | 5303286164 | Nut-level |
|
- | |||||
| 18 | 5303285465 | Knob-leveling |
|
- | |||||
| 19 | 5303285466 | Screw |
|
- | |||||
| 20 | 5303286208 | Wrapper-lower |
|
- | |||||
| 21 | 5303201723 | Start Kit |
|
- | |||||
| 22 | 5303286385 | Insulation-foam |
|
- | |||||
| *79498 | 5303290357 | Strainer |
|
- |
