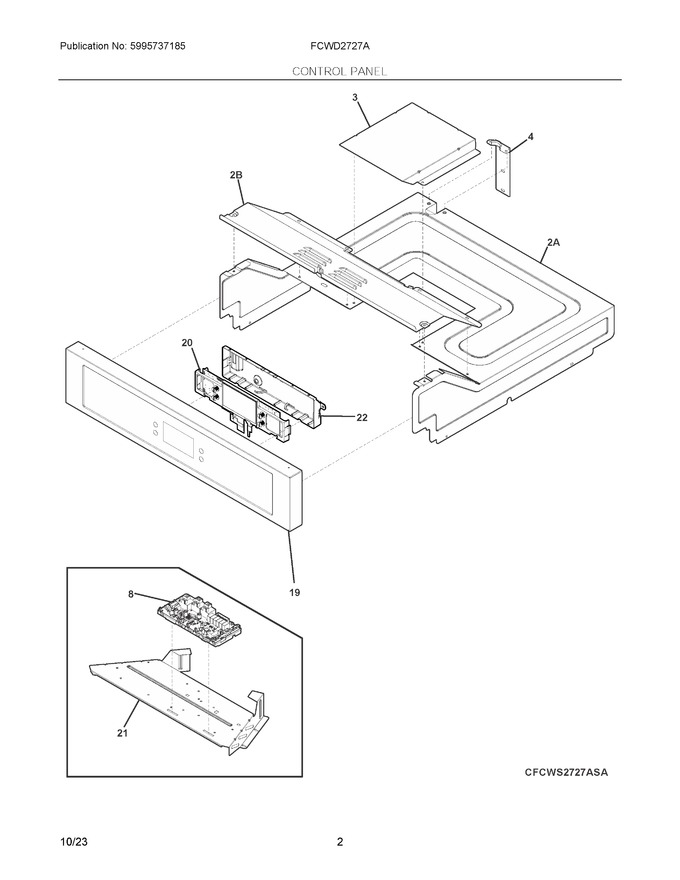

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box, Fan Service		Appelez-nous	-
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	140184940033		Board Assembly, Ovc Control, W/bracket   (Replaces: 5304525432)			Immediately	$ 167.99
19	5304525463		Control Panel, Assembly, White				$ 168.66
20	5304537403		Controller, Electronic, Pux   (Replaces: 5304532944)				$ 175.50
21	139028002		Bracket, Mounting				$ 38.37
22	5304523582		Housing, Controller			Immediately	$ 34.13
2A	139003603		Cover, Oven Top				$ 69.99
NI	5304526233		Screw, T-20 St, 8-24 X 5/8		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72
