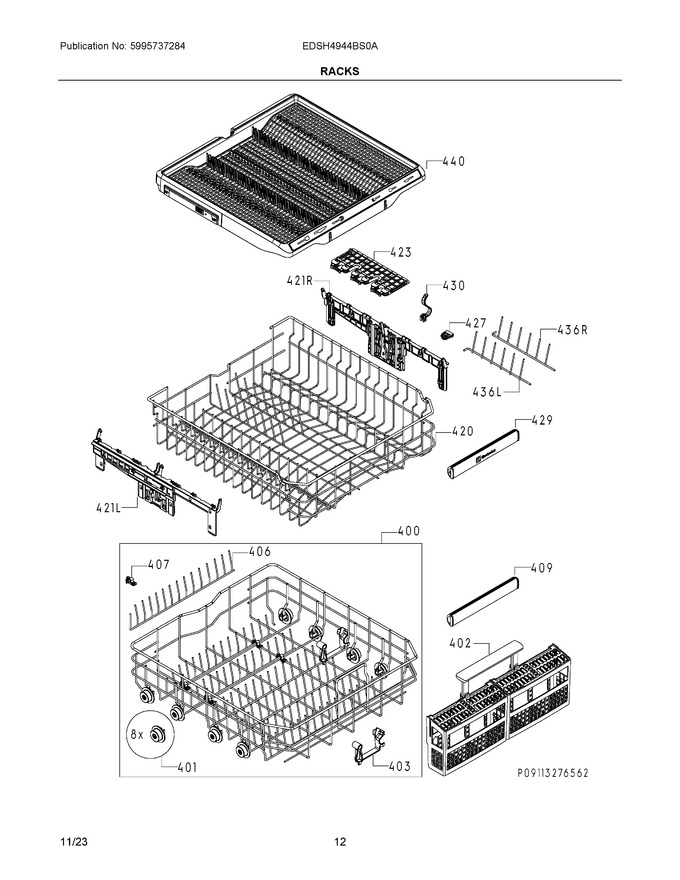

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	140066296207		Rack Assembly, Lower, Silver   (Replaces: A06629603)				$ 161.87
401	405507213		Rack Roller, Kit, Lower				$ 45.46
402	A00173221		Cutlery Basket, Assembly, Grey		Appelez-nous	-
403	A23778002		Clip, Cutlery Basket			Immediately	$ 13.40
406	A06542001		Partition, Lower Rack				$ 102.95
407	807282902		Clip, Partition, Lower Rack				$ 65.92
409	405595662		Handle Assembly, Basket, Lower, Front & Rear		Appelez-nous	-
420	A00239833		Rack Assembly, Upper, Silver				$ 318.50
423	808124102		Shelf, Cup, Grey				$ 171.00
427	A00141702		Fixing Clamp, Partition, Upper				$ 74.99
429	405595663		Handle Assembly, Basket, Upper, Front & Rear		Appelez-nous	-
430	A00924504		Clip, Cup				$ 33.42
440	140200578239		Tray, Cutlery, Gray   (Replaces: A20057811)		Appelez-nous	-
421L	A04911101		Adjuster, Upper Basket, Lh, Quick Lift				$ 46.89
421R	A04911102		Adjuster, Upper Basket, Rh, Quick Lift				$ 46.89
436L	A00237001		Partition, Upper Rack, Lh				$ 160.61
436R	807077101		Partition, Upper Rack, Rh				$ 156.64
