View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

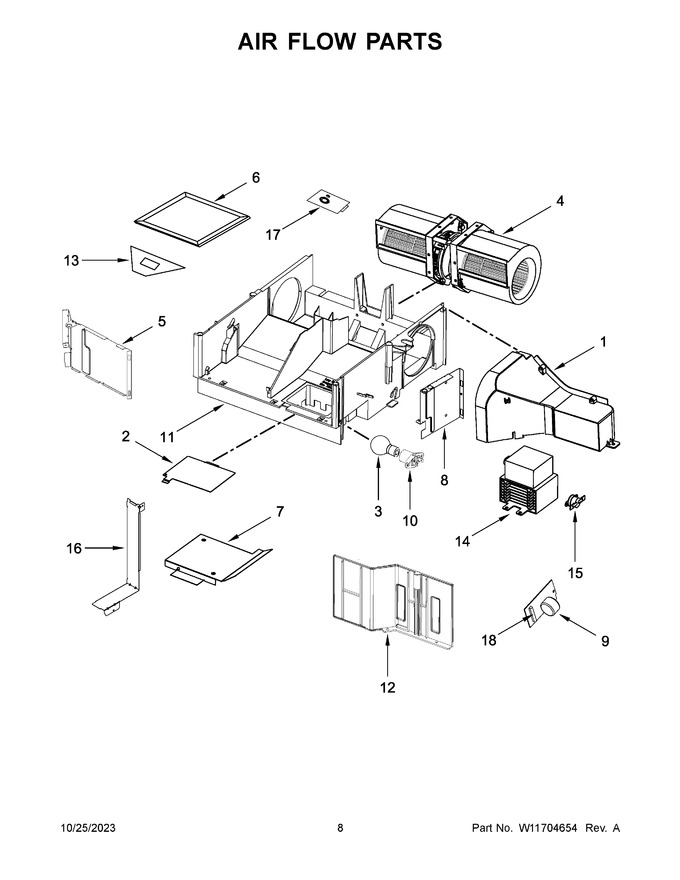

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | W11556218 | Bulb, Lamp (Replaces: W11541696) |
|
Immediately | $ 12.23 | ||||
| 4 | W11441128 | Motor, Hood Fan (Replaces: W11409094) |
|
Immediately | $ 190.49 | ||||
| 5 | W10827799 | Plate, Air Guide Sealing |
|
- | |||||
| 6 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 15.95 | ||||
| 7 | W10845672 | Guide, Air |
|
- | |||||
| 8 | W10828079 | Cover, Right Duct |
|
- | |||||
| 9 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 10 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 11 | W10828030 | Baseplate, Air Guide |
|
$ 91.72 | |||||
| 12 | W11520832 | Shield, Finger |
|
- | |||||
| 13 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 14 | W10754299 | Magnetron |
|
Immediately | $ 208.09 | ||||
| 15 | W10832024 | Thermostat, Magnetron |
|
$ 77.93 | |||||
| 16 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 17 | W11590866 | Sensor, Humidity (Replaces: W11381423) |
|
$ 60.67 | |||||
| 18 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 |
