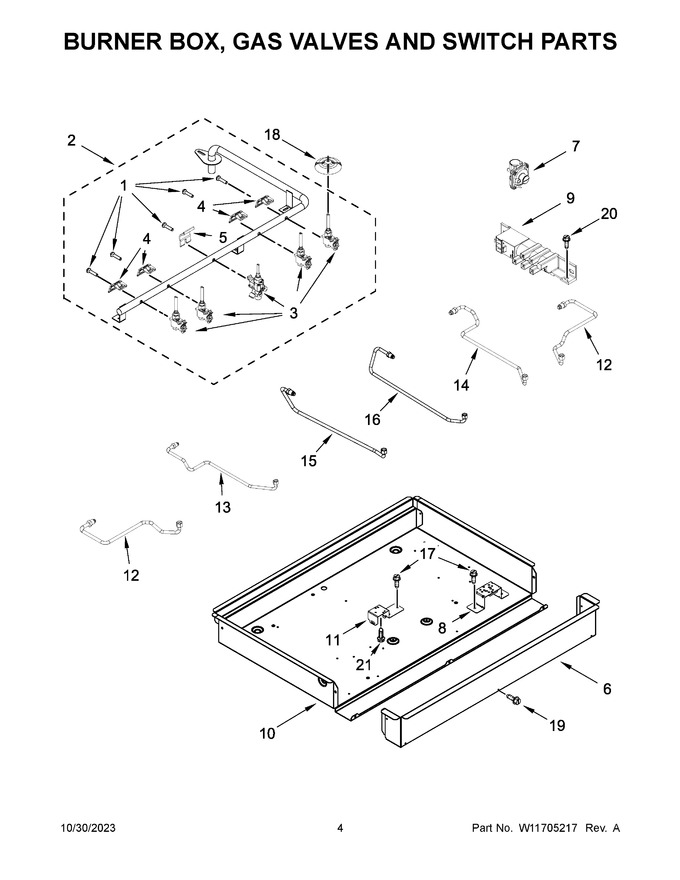

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W11706298		Pipe Manifold Assembly   (Replaces: W11673573)			Immediately	$ 319.24
3	W11702872		Valve, Single (left Front And Right Rear)   (Replaces: W11629615)				$ 26.90
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10714775		Panel, Front   (Replaces: W10705474)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 82.85
10	W10710916		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 19.29
12	W10545796		Tubing, Gas Burner (left Front And Right Front)				$ 70.85
13	W10545797		Tubing, Gas Burner (left Rear)				$ 70.60
14	W10545798		Tubing, Gas Burner (right Rear)				$ 75.20
15	W10545801		Tubing, Gas Burner (center, Main)				$ 71.31
16	W10545800		Tubing, Gas Burner (center, Simmer)				$ 71.30
17	W10443110		Screw			Immediately	$ 13.07
18	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	7101P42660		Screw		Appelez-nous	-
21	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
3A	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 26.00
3B	W11703063		Valve, Single (right Front)   (Replaces: W11629617)				$ 26.00
3C	W11706266		Valve, Dual (center)   (Replaces: W11629618)			Immediately	$ 114.08
NI	W11763721		Griddle   (Replaces: W10662080)				$ 91.28
