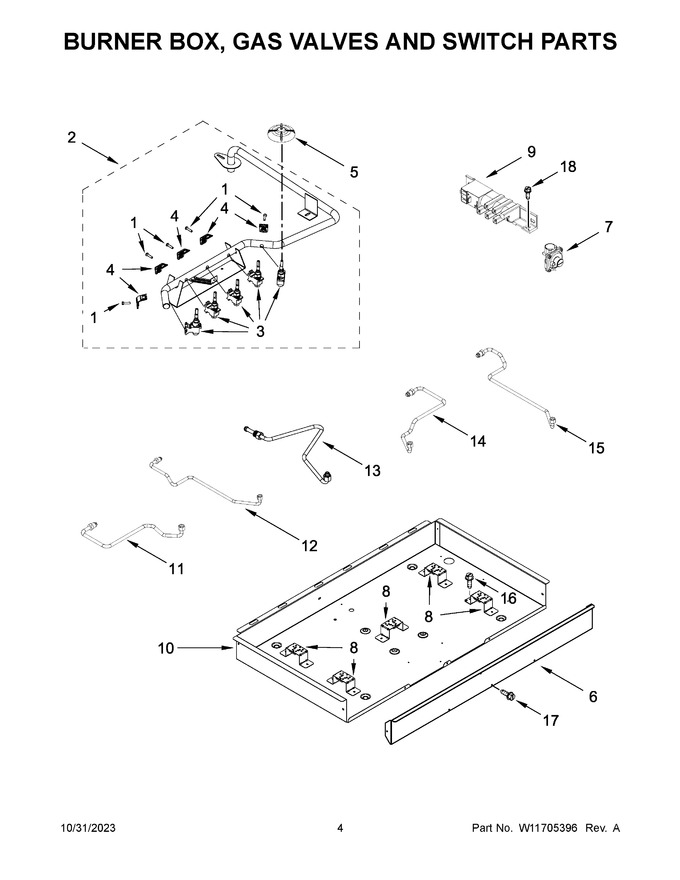

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 10.15 | |||||
| 2 | W11706302 | Manifold Assembly (Replaces: W11673571) |
|
- | |||||
| 3 | W11706289 | Valve, Single (left Rear) (Replaces: W11672768) |
|
- | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 65.54 | |||||
| 5 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 17.40 | |||||
| 6 | W10718141 | Panel, Front (Replaces: W10614951) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 177.34 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 20.00 | |||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 82.85 | ||||
| 10 | W11706295 | Box, Burner (Replaces: W11678089) |
|
- | |||||
| 11 | W10566305 | Tubing, Gas Burner (left Front) |
|
- | |||||
| 12 | W10566306 | Tubing, Gas Burner (left Rear) |
|
- | |||||
| 13 | W10566302 | Tubing, Gas Burner (center) |
|
- | |||||
| 14 | W10566308 | Tubing, Gas Burner (right Front) |
|
- | |||||
| 15 | W10566307 | Tubing, Gas Burner (right Rear) |
|
- | |||||
| 16 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 18 | 7101P42660 | Screw |
|
- | |||||
| 3A | W11706290 | Valve, Single (right Front) (Replaces: W11672770) |
|
- | |||||
| 3B | W11706286 | Valve, Single (left Front) (Replaces: W11672772) |
|
- | |||||
| 3C | W11706291 | Valve, Single (right Rear) (Replaces: W11672771) |
|
- | |||||
| NI | W10724598 | Stainless Premium Knob Kit (qty 5) |
|
- |
