01 - Cover Sheet

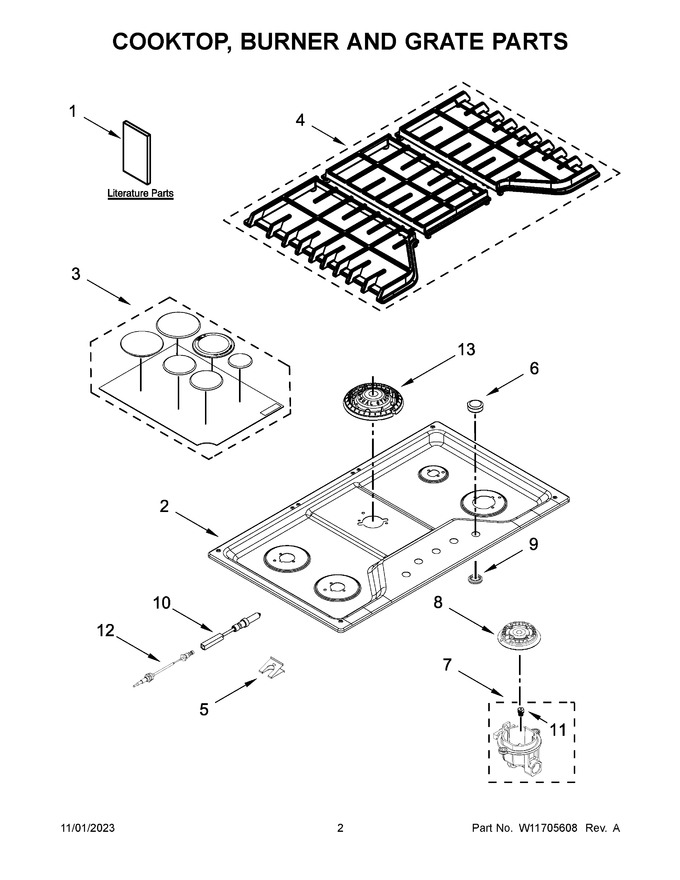

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468901		Owner's Manual		Appelez-nous	-
2	W10597067		Cooktop				$ 357.83
3	W10833886		Burner Cap Kit (black)   (Replaces: W10613386)				$ 121.71
4	W11334473		Grate Kit (includes 3 Grates) (black)   (Replaces: W11241673)				$ 343.95
5	8286863		Spring, Electrode				$ 65.93
6	WPW10545849		Knobs, Cooktop (stainless)   (Replaces: W10545849)			Immediately	$ 79.76
7	W10597166		Holder, Orifice (9.1k) (left Front And Right Front)				$ 63.25
8	WP8286814		Head, Burner (left Front, Left Rear & Right Front)   (Replaces: 8286814)				$ 106.79
9	W11206740		Black   (Replaces: W10625915)				$ 7.81
10	W10852959		Electrode, Stack (center)   (Replaces: W10763330)			Immediately	$ 66.09
11	W10652710		Orifice (left Front And Right Front)				$ 23.37
12	W11507531		Wiring, Electrode (left Front And Right Front)   (Replaces: W11439331)				$ 52.13
13	W10811599		Head, Burner   (Replaces: W10611434)				$ 186.16
11A	W10791076		Orifice (left Rear)   (Replaces: W10151347)				$ 85.86
11B	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 77.40
11C	W10791073		Orifice (center, Main)   (Replaces: W10609592)				$ 80.11
11D	W10652706		Orifice (center, Simmer)				$ 85.68
12A	W11507532		Wiring, Electrode (left Rear And Right Rear)   (Replaces: W11439332)			Immediately	$ 52.19
1A	W11466943		Quick Start Guide		Appelez-nous	-
7A	W10613381		Holder, Orifice (10k) (left Rear)				$ 61.77
7B	W10594399		Holder, Orifice (5k) (right Rear)				$ 33.26
7C	W10611441		Holder, Orifice (17k) (center)				$ 64.51
8A	WP8286813		Head, Burner (right Rear)   (Replaces: 8286813)				$ 85.50
