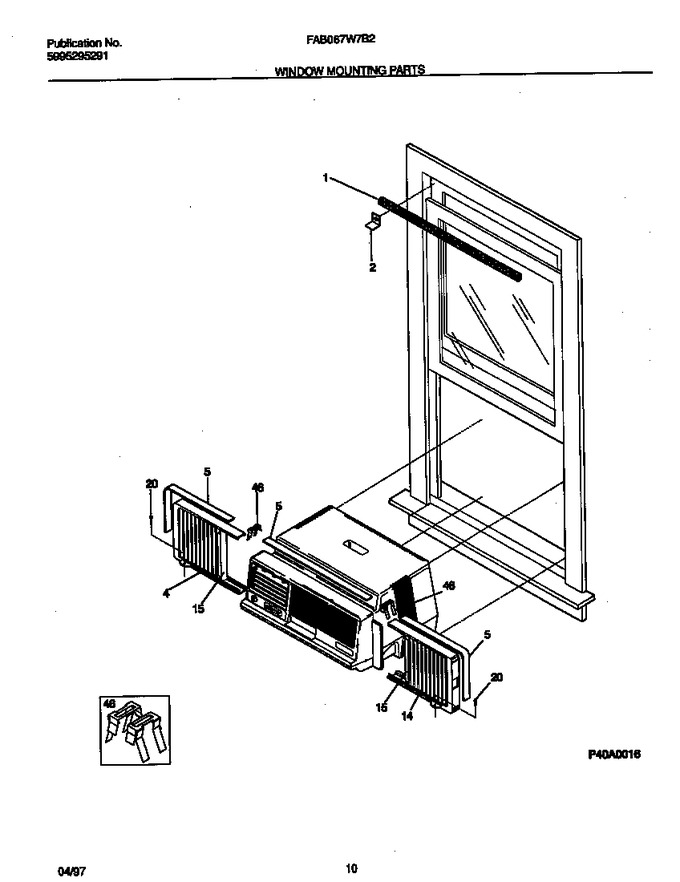

06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal, Frame, Top |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303321504 | Frame,lh |
|
- | |||||
| 5 | 5303285464 | Seal, Frame |
|
- | |||||
| 14 | 5303321505 | Frame,rh |
|
- | |||||
| 15 | 5303321482 | Accordian, (2) |
|
- | |||||
| 20 | 5303295750 | Screw, 8-18 X 0.750 |
|
- | |||||
| 46 | 5303285468 | Clip-accordian |
|
- |
