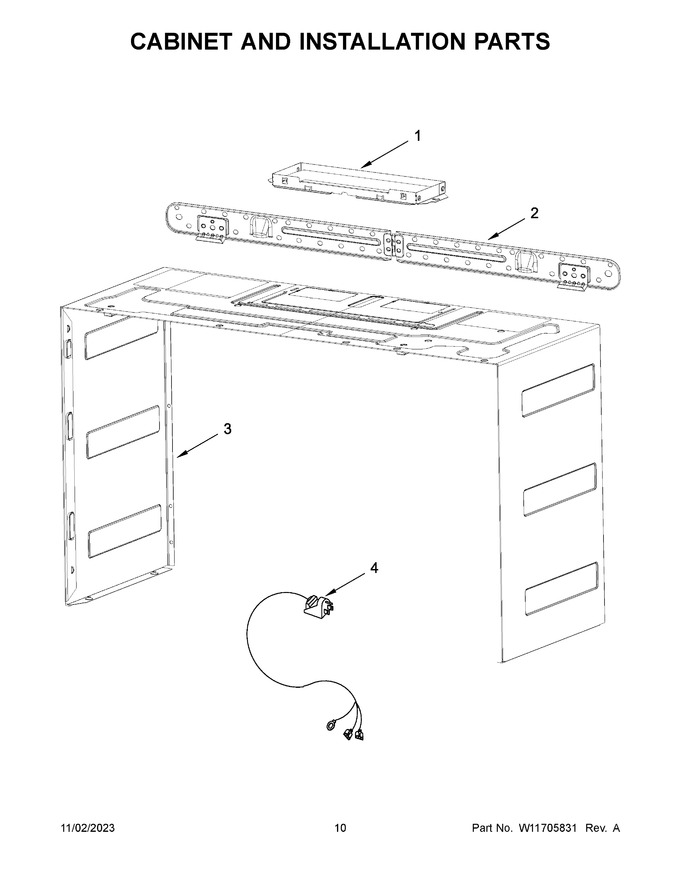

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 2 | W11593197 | Plate, Mounting |
|
$ 17.19 | |||||
| 3 | W11593183 | Case, Outer (black) |
|
$ 210.20 | |||||
| 4 | W11705231 | Cord, Power (Replaces: W11559094) |
|
$ 65.78 | |||||
| NI | W11707570 | Miscellaneous Parts, Kit, Shim (Replaces: W11674749) |
|
$ 11.76 | |||||
| NI | W11353963 | Miscellaneous Parts, Harness, A38 To Acu |
|
- | |||||
| NI | W11353962 | Miscellaneous Parts, Harness, Door Hinge To Acu |
|
$ 45.55 | |||||
| NI | W11353960 | Miscellaneous Parts, Harness, A01 To Door Hinge |
|
- | |||||
| NI | W11353955 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W11630300 | Miscellaneous Parts, Kit, Bump Out (for 15in Cabinet Depth) |
|
Immediately | $ 53.83 | ||||
| NI | W11630290 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 10.23 | ||||
| NI | W11581993 | Miscellaneous Parts, Harness, Door & Odm To Acu |
|
- | |||||
| NI | W11483626 | Miscellaneous Parts, Harness, Mimas To Acu |
|
- | |||||
| NI | W11353989 | Miscellaneous Parts, Harness, Hood Led To Acu |
|
- | |||||
| NI | W11353979 | Miscellaneous Parts, Harness, Cavity Led To Acu |
|
- | |||||
| NI | W11353973 | Miscellaneous Parts, Harness, Vent Motor To Acu |
|
- |
