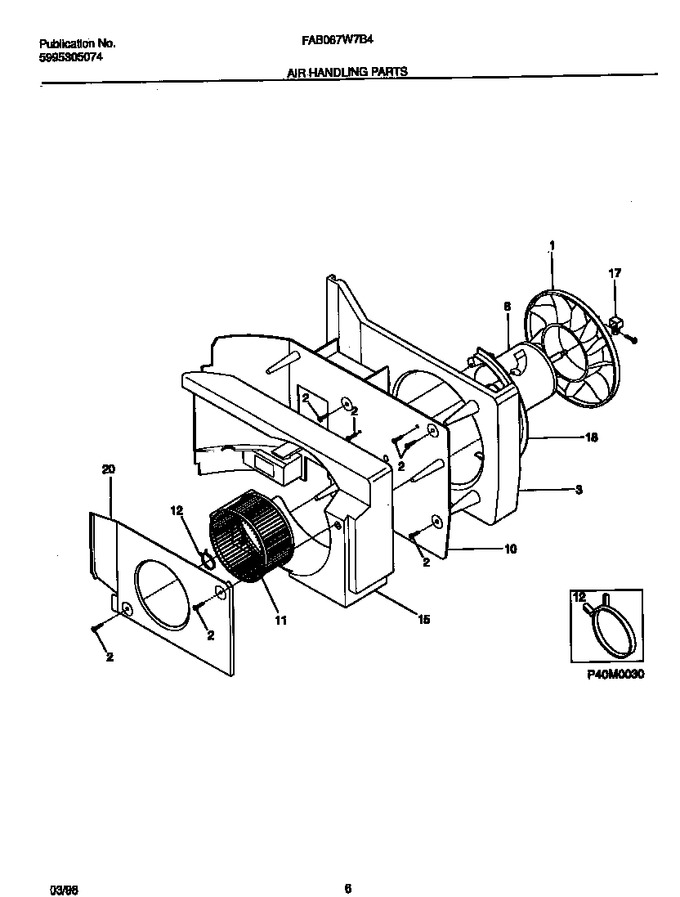

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303285447 | Fan Blade With Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 5303285446 | Housing-fan |
|
- | |||||
| 8 | 5303295746 | Motor-fan |
|
- | |||||
| 10 | 5303286382 | Bulkhead |
|
- | |||||
| 11 | 5303285448 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 5303285449 | Housing-blower |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 18 | 5303270042 | Deflector-water |
|
- | |||||
| 20 | 5303286383 | Plate, Housing |
|
- |
