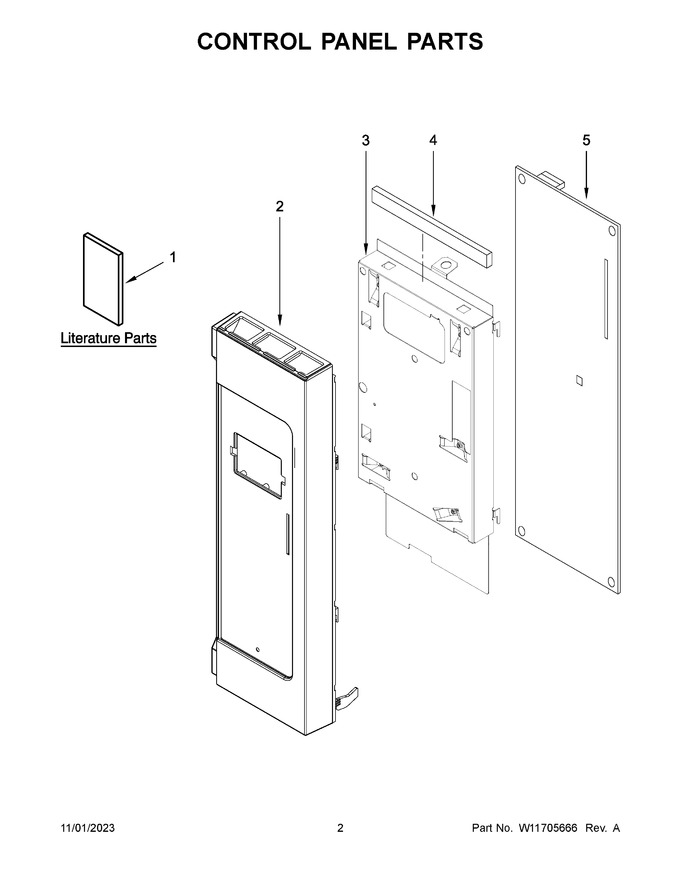

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11485888 | Installation Instructions |
|
- | |||||
| 2 | W11175577 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W11173819) |
|
$ 299.14 | |||||
| 3 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11544455 | Microcomputer (Replaces: W10849831) |
|
Immediately | $ 107.59 | ||||
| 1A | W10918339 | Use And Care Guide |
|
- | |||||
| 1B | W10835579 | Cooking Guide Label |
|
- | |||||
| 1C | W11561749 | Tech Sheet |
|
- |
