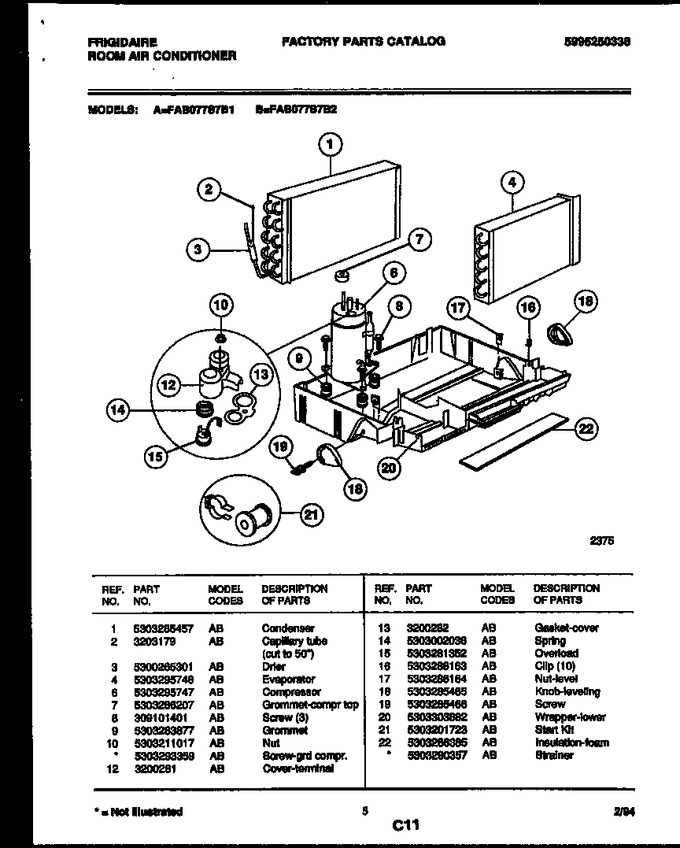

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Air Handling Parts
04 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303285457 | Condenser |
|
- | |||||
| 2 | 3203179 | Capillary Tube, Cut To 50`` |
|
- | |||||
| 3 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 4 | 5303295748 | Evaporator |
|
- | |||||
| 6 | 5303295747 | Compressor |
|
- | |||||
| 7 | 5303286207 | Grommet-compr Top |
|
- | |||||
| 8 | 309101401 | Screw (3) |
|
- | |||||
| 9 | 5303283877 | Grommet |
|
- | |||||
| 10 | 5303211017 | Nut |
|
- | |||||
| 12 | 3200281 | Cover-terminal |
|
- | |||||
| 13 | 3200282 | Gasket-cover |
|
- | |||||
| 14 | 5303002036 | Spring |
|
- | |||||
| 15 | 5303281352 | Overload |
|
- | |||||
| 16 | 5303286163 | Clip (10) |
|
- | |||||
| 17 | 5303286164 | Nut-level |
|
- | |||||
| 18 | 5303285465 | Knob-leveling |
|
- | |||||
| 19 | 5303285466 | Screw |
|
- | |||||
| 20 | 5303303682 | Wrapper-lower |
|
- | |||||
| 21 | 5303201723 | Start Kit |
|
- | |||||
| 22 | 5303286385 | Insulation-foam |
|
- | |||||
| *92771 | 5303290357 | Strainer |
|
- | |||||
| 10A | 5303293359 | Screw-grd Compr. (non-illustrated) |
|
- |
