01 - Cover Sheet

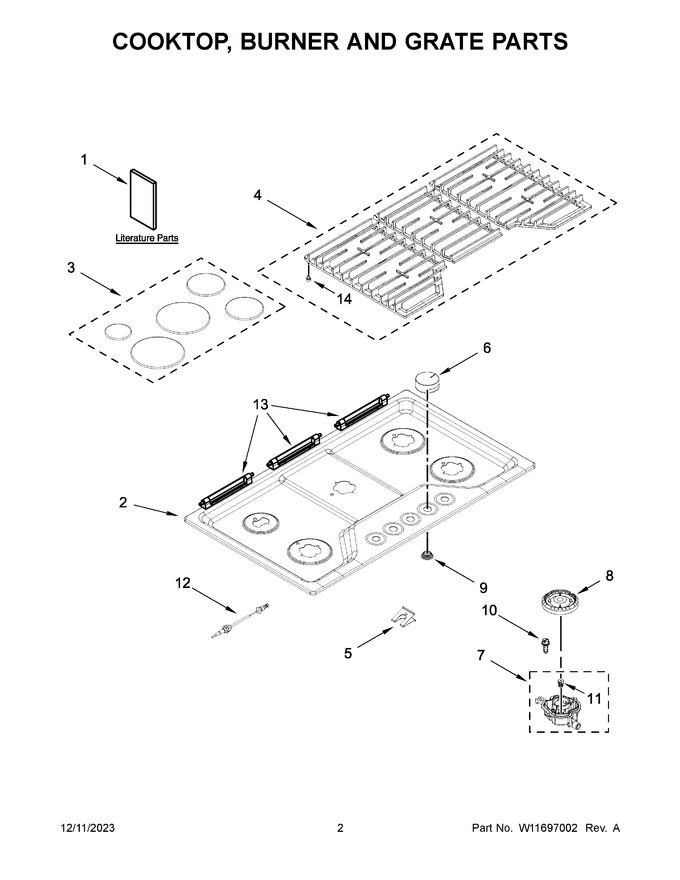

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11613935		Owner's Manual		Appelez-nous	-
2	W11719767		Cooktop (stainless)   (Replaces: W11585229)			Immediately	$ 467.85
3	W11703346		Burner Cap Kit (black (set Of 5))   (Replaces: W11596821)			Immediately	$ 170.78
4	W11703766		Grate Kit (black (set Of 3))   (Replaces: W11591619)				$ 288.92
5	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 10.71
6	W11703767		Knobs, Cooktop (stainless)   (Replaces: W11573784)				$ 57.00
7	W11702575		Holder, Orifice (12k) (left Front)   (Replaces: W11567145)		Appelez-nous	-
8	W11531097		Flame Spreader (right Front And Right Rear)   (Replaces: W11352195)				$ 69.56
9	W11703768		Grommet (stainless)   (Replaces: W11573785)			Immediately	$ 24.86
10	W11699921		Screw   (Replaces: W10758282)				$ 12.66
11	W11718105		Orifice (left Front)   (Replaces: W10723360)		Appelez-nous	-
12	W11702865		Wiring, Electrode (440mm)   (Replaces: W11640975)				$ 17.25
13	W10826075		Rear, Hinge-grate (stainless Model Only)				$ 94.24
14	W11703399		Foot Pad, Grate (outer)   (Replaces: W10598131)			Immediately	$ 12.16
11A	W11718107		Orifice (left Rear)   (Replaces: W11364991)		Appelez-nous	-
11B	W11703343		Orifice (center)   (Replaces: W11610057)		Appelez-nous	-
11C	W11718108		Orifice (right Front And Right Rear)   (Replaces: W11631338)		Appelez-nous	-
12A	W11703398		Wiring, Electrode (636mm)   (Replaces: W11642338)				$ 17.31
1A	W11635589		Quick Start Guide		Appelez-nous	-
7A	W11702576		Holder, Orifice (5k) (left Rear)   (Replaces: W11567151)		Appelez-nous	-
7B	W11702578		Holder, Orifice (18k) (center)   (Replaces: W11567144)		Appelez-nous	-
7C	W11702577		Holder, Orifice (9.1k) (right Front And Right Rear)   (Replaces: W11567146)		Appelez-nous	-
8A	W11531098		Flame Spreader (left Rear)   (Replaces: W11352197)				$ 69.19
8B	W11531096		Flame Spreader (left Front And Center)   (Replaces: W11352193)				$ 70.17
NI	7101P06260		Screw (for Tie Down Bracket)		Appelez-nous	-
NI	W11703400		Harness (switch), Main   (Replaces: W11632719)				$ 69.21
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11637584		Harness (switch), Main   (Replaces: W10878749)				$ 28.58
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W11702867		Lp Conversion Kit   (Replaces: W11573776)		Appelez-nous	-
