View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

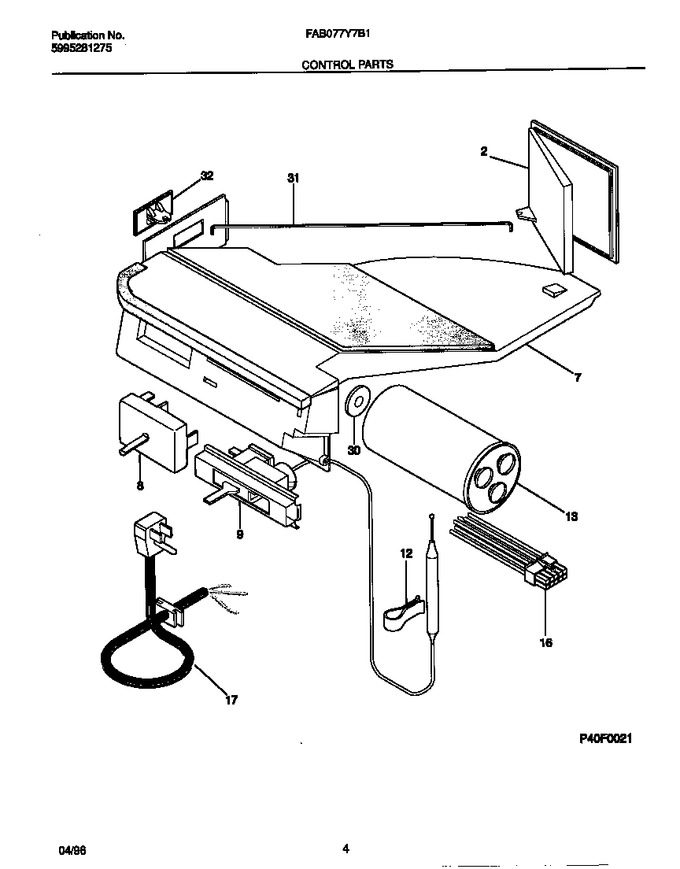

| 2 | 5303285450 | Door, Vent |
|
- | |||||
| 7 | 5303285458 | Panel Control |
|
- | |||||
| 8 | 5303285459 | Switch-selector |
|
- | |||||
| 9 | 5303285460 | Control-temperature |
|
- | |||||
| 12 | 5303286381 | Clip-control Bulb |
|
- | |||||
| 13 | 5303295749 | Capacitor, 370 V, 10 + 35 Mfd |
|
- | |||||
| 16 | 5303295500 | Wiring Harness |
|
- | |||||
| 17 | 5303285461 | Cord-electric Power |
|
- | |||||
| 30 | 5303270092 | Nut-capacitor |
|
- | |||||
| 31 | 5303285451 | Rod, Vent Door |
|
- | |||||
| 32 | 5303285452 | Knob-vent Door |
|
- |
